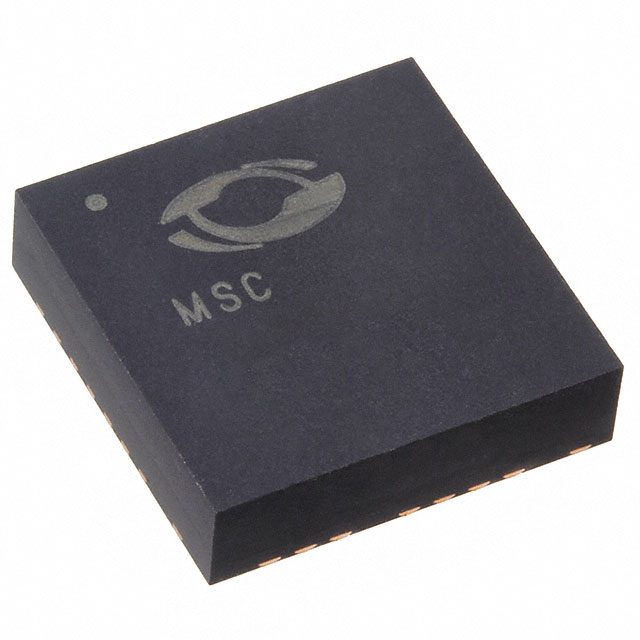

LX9610ILQ
ObsoleteMicrosemi Corporation
IC REG BUCK ADJUSTABLE 12A 15QFN
Deep-Dive with AI
Search across all available documentation for this part.
LX9610ILQ
ObsoleteMicrosemi Corporation
IC REG BUCK ADJUSTABLE 12A 15QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LX9610ILQ |
|---|---|
| Current - Output | 12 A |
| Frequency - Switching | 600 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 15-PowerBQFN |
| Supplier Device Package | 15-QFN (15x15) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 22 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output (Max) | 5 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LX9610 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 12A 15-PowerBQFN
Documents
Technical documentation and resources
No documents available
