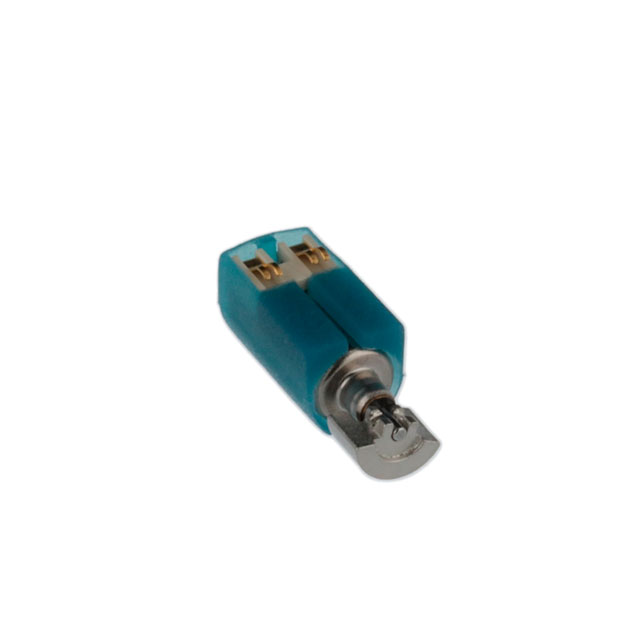

VZ4TH7B2120042P
ActiveVybronics Inc
VIBRATION ERM MTR LOW CURR 0.45G
Deep-Dive with AI
Search across all available documentation for this part.
VZ4TH7B2120042P
ActiveVybronics Inc
VIBRATION ERM MTR LOW CURR 0.45G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VZ4TH7B2120042P |
|---|---|
| Function | ERM, Vibration |
| Length - Shaft and Bearing [x] | 3.8 mm |
| Length - Shaft and Bearing [x] | 0.15 " |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 8000 RPM |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.181 in |
| Size / Dimension [y] | 4.6 mm |
| Termination Style | Pressure Contact |
| Type | DC Motor |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.40 | |
| 5 | $ 5.12 | |||
| 10 | $ 4.97 | |||
| 25 | $ 4.83 | |||
| 50 | $ 4.41 | |||
| 100 | $ 3.98 | |||
| 300 | $ 3.84 | |||
| 500 | $ 3.78 | |||
| 1000 | $ 3.55 | |||
Description
General part information
Z4TH7B2120042 Series
DC Motor Vibration, ERM 8000 RPM 3VDC
Documents
Technical documentation and resources
