PM20C06HBNN

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, SINGLE ROW, 2.0

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, SINGLE ROW, 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	PM20C06HBNN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Mounting Type	Number of Rows	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Material	Fastening Type	Insulation Material	Connector Type	Insulation Height	Insulation Height	Number of Positions	Termination
METZ CONNECT USA Inc. PM20C06HBNN	Flash	Black	Gold	3 mm	0.118 in	All	0.079 in	2 mm	Male Pin	Surface Mount Right Angle	1	Square	-40 °C	105 ░C	Unshrouded	Copper Zinc	Push-Pull	Polyethylene	Header	0.079 in	2 mm	6	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

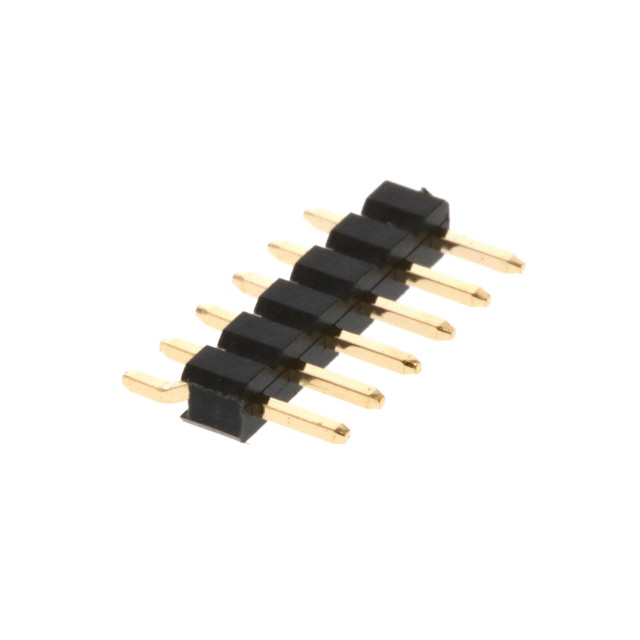

Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
