150224-2020-RB-WD
Active3M (TC)
CONN RCPT 24POS 0.079 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
150224-2020-RB-WD
Active3M (TC)
CONN RCPT 24POS 0.079 GOLD SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 150224-2020-RB-WD |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Board Guide |
| Insulation Color | Black |
| Insulation Height | 4.65 mm |
| Insulation Height | 0.183 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 500 V |
150224 Series
| Part | Pitch - Mating [x] | Pitch - Mating [x] | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Fastening Type | Insulation Material | Contact Finish - Mating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Termination | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Features | Connector Type | Insulation Height | Insulation Height | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Shape | Number of Positions | Mounting Type | Material Flammability Rating | Number of Positions Loaded | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 0.079 in | 2 mm | 0.079 in | 2 mm | Tin | Push-Pull | Thermoplastic | Gold | Black | 200 µin | 5.08 µm | Female Socket | Solder | Board to Board Cable | 30 Áin | 0.76 Ám | Copper Alloy | Pick and Place | Receptacle | 4.65 mm | 0.183 in | 2 | 105 ░C | -55 °C | 500 V | Square | 24 | Surface Mount | UL94 V-0 | All | ||
3M (TC) | 0.079 in | 2 mm | 0.079 in | 2 mm | Tin | Push-Pull | Thermoplastic | Gold | Black | 200 µin | 5.08 µm | Female Socket | Solder | Board to Board Cable | 30 Áin | 0.76 Ám | Copper Alloy | Board Guide Pick and Place | Receptacle | 4.65 mm | 0.183 in | 2 | 105 ░C | -55 °C | 500 V | Square | 24 | Surface Mount | UL94 V-0 | All | ||
3M (TC) | ||||||||||||||||||||||||||||||||
3M (TC) | 0.079 in | 2 mm | 0.079 in | 2 mm | Tin | Push-Pull | Thermoplastic | Gold | Black | 200 µin | 5.08 µm | Female Socket | Solder | Board to Board Cable | 30 Áin | 0.76 Ám | Copper Alloy | Board Guide | Receptacle | 4.55 mm | 0.179 " | 2 | 105 ░C | -55 °C | 500 V | Square | 24 | Through Hole Right Angle | UL94 V-0 | All | 2.54 mm | 0.1 in |
3M (TC) | 0.079 in | 2 mm | 0.079 in | 2 mm | Tin | Push-Pull | Thermoplastic | Gold | Black | 200 µin | 5.08 µm | Female Socket | Solder | Board to Board Cable | 30 Áin | 0.76 Ám | Copper Alloy | Receptacle | 4.5 mm | 0.177 in | 2 | 105 ░C | -55 °C | 500 V | Square | 24 | Through Hole | UL94 V-0 | All | 2.54 mm | 0.1 in | |
3M (TC) | 0.079 in | 2 mm | 0.079 in | 2 mm | Tin | Push-Pull | Thermoplastic | Gold | Black | 200 µin | 5.08 µm | Female Socket | Solder | Board to Board Cable | 30 Áin | 0.76 Ám | Copper Alloy | Receptacle | 4.55 mm | 0.179 " | 2 | 105 ░C | -55 °C | 500 V | Square | 24 | Through Hole Right Angle | UL94 V-0 | All | 2.54 mm | 0.1 in | |
3M (TC) | 0.079 in | 2 mm | 0.079 in | 2 mm | Tin-Lead | Push-Pull | Thermoplastic | Gold | Black | 200 µin | 5.08 µm | Female Socket | Solder | Board to Board Cable | 15 µin | 0.38 µm | Copper Alloy | Receptacle | 4.55 mm | 0.179 " | 2 | 105 ░C | -55 °C | 500 V | Square | 24 | Through Hole Right Angle | UL94 V-0 | All | 2.54 mm | 0.1 in | |
3M (TC) | 0.079 in | 2 mm | 0.079 in | 2 mm | Tin-Lead | Push-Pull | Thermoplastic | Gold | Black | 200 µin | 5.08 µm | Female Socket | Solder | Board to Board Cable | 15 µin | 0.38 µm | Copper Alloy | Pick and Place | Receptacle | 4.65 mm | 0.183 in | 2 | 105 ░C | -55 °C | 500 V | Square | 24 | Surface Mount | UL94 V-0 | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2100 | $ 2.38 | |
Description
General part information
150224 Series

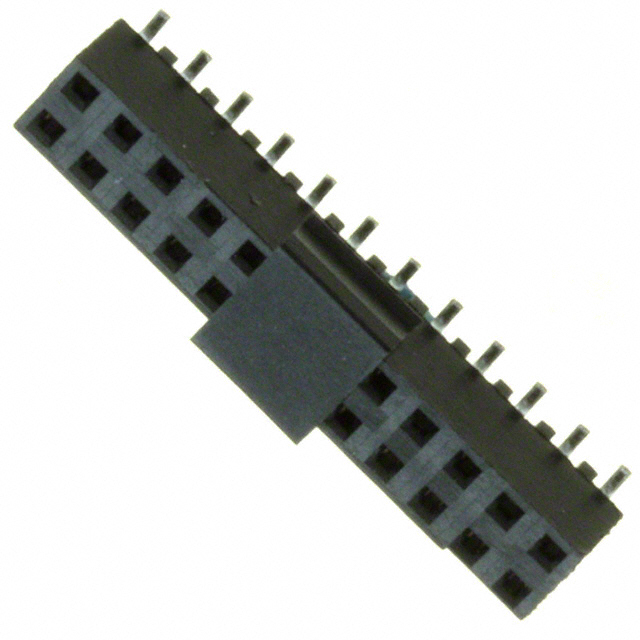

24 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Documents
Technical documentation and resources
