345-009-525-607
ActiveEDAC Inc.

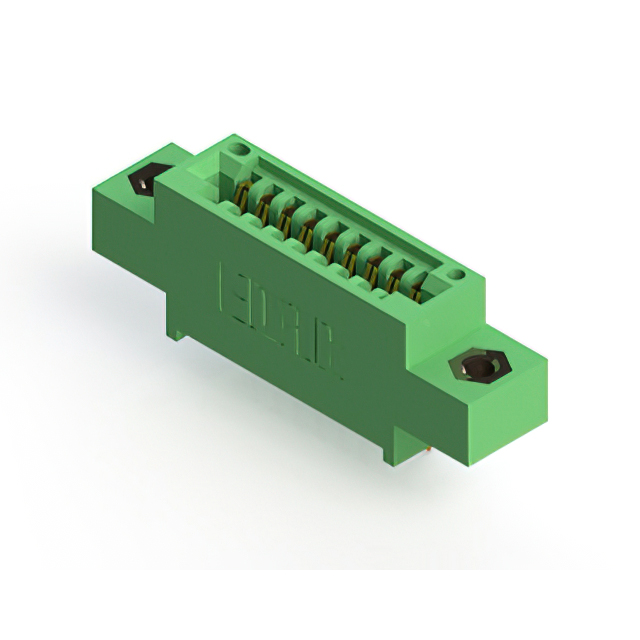

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 9 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-009-525-607
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 9 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-009-525-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-009 Series
...
| Part | Gender | Features | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Contact Material | Pitch [x] | Pitch [x] | Color | Contact Type | Read Out | Termination | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Finish | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Termination Rows | Material - Insulation | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Card Guides | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | Copper Alloy | 2.54 mm | 0.1 in | Green | Cantilever | Single | Solder | Through Hole Right Angle | 9 | Gold | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1 | Polyester Thermoplastic | ||||
EDAC Inc. | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | Copper Alloy | 2.54 mm | 0.1 in | Green | Cantilever | Single | Wire Wrap | Through Hole Right Angle | 9 | Gold | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 1 | Polyester Thermoplastic | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | Copper Alloy | 2.54 mm | 0.1 in | Green | Cantilever | Single | Solder | Through Hole | 9 | Gold | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Floating Bobbin Top Mount Opening | 1 | Polyester Thermoplastic | 2.95 mm | 0.116 in | |||
EDAC Inc. | Female | Card Guides | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | Copper Alloy | 2.54 mm | 0.1 in | Green | Cantilever | Single | Solder | Through Hole | 9 | Gold | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1 | Polyester Thermoplastic | ||||
EDAC Inc. | Female | Card Guides | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | Copper Alloy | 2.54 mm | 0.1 in | Green | Cantilever | Single | Wire Wrap | Through Hole Right Angle | 9 | Gold | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Polyester Thermoplastic | ||||
EDAC Inc. | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | Copper Alloy | 2.54 mm | 0.1 in | Green | Cantilever | Single | Solder | Through Hole | 9 | Gold | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 1 | Polyester Thermoplastic | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | Copper Alloy | 2.54 mm | 0.1 in | Green | Cantilever | Single | Solder | Through Hole Right Angle | 9 | Gold | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Top Mount Opening Unthreaded | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | |||
EDAC Inc. | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | Copper Alloy | 2.54 mm | 0.1 in | Green | Cantilever | Single | Solder | Through Hole | 9 | Gold | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | 1 | Polyester Thermoplastic | 3.25 mm | 0.128 in | |||
EDAC Inc. | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | Copper Alloy | 2.54 mm | 0.1 in | Green | Cantilever | Single | Solder | Through Hole | 9 | Gold | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 1 | Polyester Thermoplastic | ||||||
EDAC Inc. | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | Copper Alloy | 2.54 mm | 0.1 in | Green | Cantilever | Single | Solder | Through Hole | 9 | Gold | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | 1 | Polyester Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-009 Series
9 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
