SC600AIMLTRT

NRND

Semtech Corporation

IC LED DRIVER RGLTR 60MA 10MLPD

Search across all available documentation for this part.

NRND

Semtech Corporation

IC LED DRIVER RGLTR 60MA 10MLPD

Technical Specifications

Parameters and characteristics for this part

Specification	SC600AIMLTRT

Applications	Backlight
Current - Output / Channel	60 mA
Frequency	650 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C

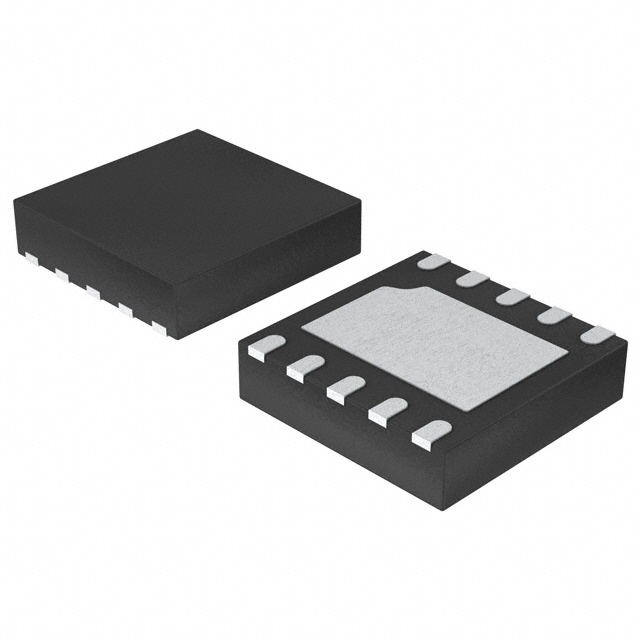

Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-MLPD (3x3)
Topology	Switched Capacitor (Charge Pump)
Type	DC DC Regulator
Voltage - Output	5 V
Voltage - Supply (Max) [Max]	6.5 V
Voltage - Supply (Min) [Min]	2.5 V

Part	Number of Outputs	Supplier Device Package	Voltage - Supply (Min) [Min]	Package / Case	Voltage - Supply (Max) [Max]	Current - Output / Channel	Type	Voltage - Output	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Frequency	Package / Case [x]	Package / Case [x]
Semtech Corporation SC600AIMLTRT	1	10-MLPD (3x3)	2.5 V	10-VFDFN Exposed Pad	6.5 V	60 mA	DC DC Regulator	5 V	Backlight	Surface Mount	150 °C	-40 °C	Switched Capacitor (Charge Pump)	650 kHz
Semtech Corporation SC600AIMSTRT	1	10-MSOP	2.5 V	10-MSOP 10-TFSOP	6.5 V	60 mA	DC DC Regulator	5 V	Backlight	Surface Mount	150 °C	-40 °C	Switched Capacitor (Charge Pump)	650 kHz	3 mm	0.118 in
Semtech Corporation SC600DIMSTRT	1	10-MSOP	2.5 V	10-MSOP 10-TFSOP	6.5 V	120 mA	DC DC Regulator	5 V	Backlight	Surface Mount	150 °C	-40 °C	Switched Capacitor (Charge Pump)	650 kHz	3 mm	0.118 in
Semtech Corporation SC600CIMSTRT	1	10-MSOP	2.5 V	10-MSOP 10-TFSOP	6.5 V	60 mA	DC DC Regulator	5 V	Backlight	Surface Mount	150 °C	-40 °C	Switched Capacitor (Charge Pump)	650 kHz	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Driver IC 1 Output DC DC Regulator Switched Capacitor (Charge Pump) Dimming 60mA 10-MLPD (3x3)

Technical documentation and resources

No documents available
