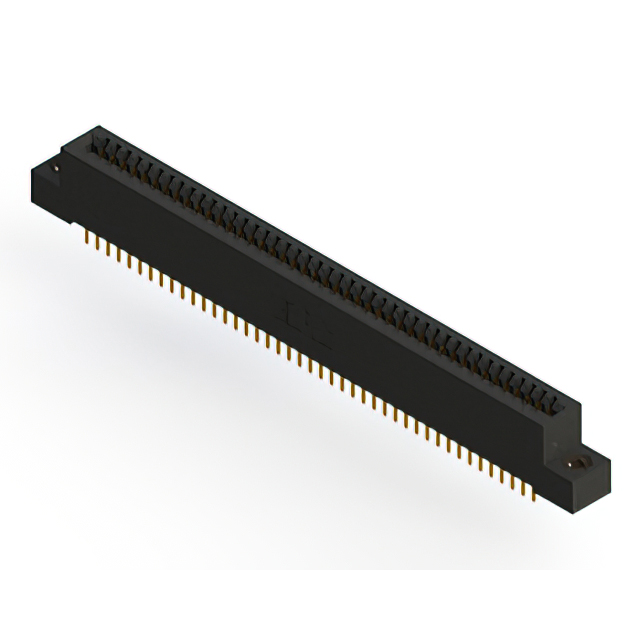

892-086-521-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-086-521-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-086-521-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

892-086 Series

Part	Number of Positions	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Card Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows	Color	Contact Finish	Read Out	Number of Rows	Number of Positions/Bay/Row [custom]	Mounting Type	Gender	Contact Type	Material - Insulation	Flange Feature	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 892-086-520-208	86	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Non Specified - Dual Edge	10 Áin	0.25 Ám	125 °C	-40 °C	2	Black	Gold	Dual	2	43	Through Hole	Female	Cantilever	Polyphenylene Sulfide (PPS)	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in
EDAC Inc. 892-086-521-207	86	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Non Specified - Dual Edge	10 Áin	0.25 Ám	125 °C	-40 °C	2	Black	Gold	Dual	2	43	Through Hole	Female	Cantilever	Polyphenylene Sulfide (PPS)	Flush Mount M3 Threaded Insert Top Opening	2.54 mm	0.1 in
EDAC Inc. 892-086-521-204	86	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Non Specified - Dual Edge	10 Áin	0.25 Ám	125 °C	-40 °C	2	Black	Gold	Dual	2	43	Through Hole	Female	Cantilever	Polyphenylene Sulfide (PPS)	Flush Mount Top Opening Unthreaded	2.54 mm	0.1 in	3.96 mm	0.156 in
EDAC Inc. 892-086-560-212	86	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Non Specified - Dual Edge	10 Áin	0.25 Ám	125 °C	-40 °C	2	Black	Gold	Dual	2	43	Board Edge Straddle Mount	Female	Cantilever	Polyphenylene Sulfide (PPS)	Flush Mount Side Opening Unthreaded	2.54 mm	0.1 in	3.25 mm	0.128 "	Card Extender
EDAC Inc. 892-086-523-212	86	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Non Specified - Dual Edge	10 Áin	0.25 Ám	125 °C	-40 °C	2	Black	Gold	Dual	2	43	Through Hole	Female	Cantilever	Polyphenylene Sulfide (PPS)	Flush Mount Side Opening Unthreaded	2.54 mm	0.1 in	3.25 mm	0.128 "
EDAC Inc. 892-086-523-201	86	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Non Specified - Dual Edge	10 Áin	0.25 Ám	125 °C	-40 °C	2	Black	Gold	Dual	2	43	Through Hole	Female	Cantilever	Polyphenylene Sulfide (PPS)		2.54 mm	0.1 in
EDAC Inc. 892-086-540-202	86	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Non Specified - Dual Edge	10 Áin	0.25 Ám	125 °C	-40 °C	2	Black	Gold	Dual	2	43	Through Hole	Female	Cantilever	Polyphenylene Sulfide (PPS)	Flush Mount Top Opening Unthreaded	2.54 mm	0.1 in	3.25 mm	0.128 "
EDAC Inc. 892-086-524-203	86	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Non Specified - Dual Edge	10 Áin	0.25 Ám	125 °C	-40 °C	2	Black	Gold	Dual	2	43	Through Hole	Female	Cantilever	Polyphenylene Sulfide (PPS)	Floating Bobbin Flush Mount	2.54 mm	0.1 in	2.95 mm	0.116 in
EDAC Inc. 892-086-521-208	86	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Non Specified - Dual Edge	10 Áin	0.25 Ám	125 °C	-40 °C	2	Black	Gold	Dual	2	43	Through Hole	Female	Cantilever	Polyphenylene Sulfide (PPS)	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in
EDAC Inc. 892-086-520-204	86	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Non Specified - Dual Edge	10 Áin	0.25 Ám	125 °C	-40 °C	2	Black	Gold	Dual	2	43	Through Hole	Female	Cantilever	Polyphenylene Sulfide (PPS)	Flush Mount Top Opening Unthreaded	2.54 mm	0.1 in	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 104.43

Description

General part information

892-086 Series

86 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
