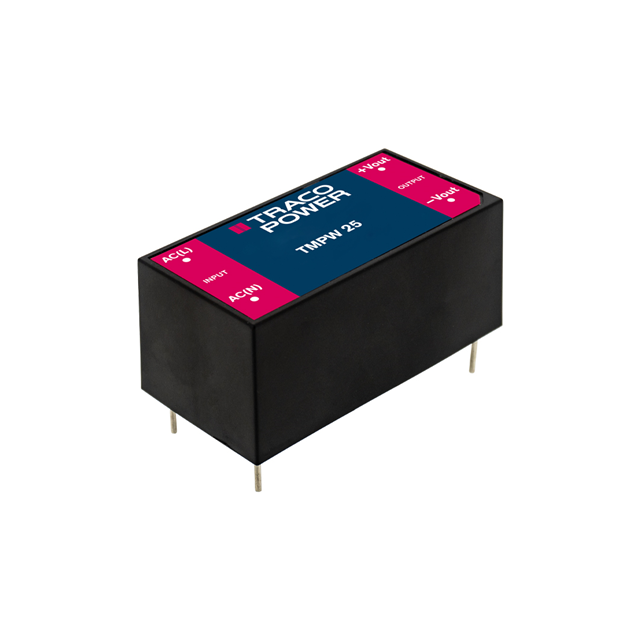

TMPW 25-115

Active

Traco Power

15V 90VAC~305VAC 1.666A 25W 88% DIP,52.5X27.5MM AC-DC POWER MODULES ROHS

Search across all available documentation for this part.

Active

Traco Power

15V 90VAC~305VAC 1.666A 25W 88% DIP,52.5X27.5MM AC-DC POWER MODULES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	TMPW 25-115

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, cURus
Current - Output (Max) [Max]	1.666 A
Efficiency	88 %
Mounting Type	Through Hole
Number of Outputs	1
Package / Case	4-DIP Module
Power (Watts)	25 W
Size / Dimension [x]	52.5 mm, 2.07 in
Size / Dimension [y]	1.08 in, 27.5 mm
Size / Dimension [z]	23.5 mm, 0.93 in
Type	Enclosed
Voltage - Input [Max]	305 VAC, 250 VDC
Voltage - Input [Min]	90 VAC, 100 V
Voltage - Output 1	15 V

AC/DC Power Modules

Part	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Efficiency	Applications	Number of Outputs	Package / Case	Approval Agency	Current - Output (Max) [Max]	Mounting Type	Power (Watts)
Traco Power TMPW 25-115	250 VDC 305 VAC	90 VAC 100 V	15 V	0.93 in 23.5 mm	1.08 in 27.5 mm	2.07 in 52.5 mm	Enclosed	88 %	Household Appliances ITE (Commercial)	1	4-DIP Module	CB cURus	1.666 A	Through Hole	25 W
