PS-250-150-WT-S

Active

BRADY

SLEEVE, 0.25"DIAX1.5"W 1=500PCS

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.25"DIAX1.5"W 1=500PCS

Technical Specifications

Parameters and characteristics for this part

Part	Material	Label Type	Color	Label Size [Min]	Label Size [x]	Label Size [Max]	Label Size [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Label Size	Label Size	Label Size [diameter]	Label Size [Max]	Label Size [x]	Label Size [Min]
BRADY PS-250-150-WT-S	Polyolefin (PO)	Heat Shrinkable	White	0.09 in 2.4 mm	1.5 " 38.1 mm	0.22 in 5.5 mm	0.25 in 6.4 mm	135 °C	-55 °C
BRADY PS-250-2-WT	Polyolefin (PO)	Heat Shrinkable	White	0.09 in		0.21 in		135 °C	-55 °C	0.25 in 50.8 mm	2 in 2.4 mm 5.5 mm 6.4 mm
BRADY PS-250-2-WT-S	Polyolefin (PO)	Heat Shrinkable	White	0.09 in		0.21 in		135 °C	-55 °C	0.25 in 50.8 mm	2 in 2.4 mm 5.5 mm 6.4 mm
BRADY PS-250-2-WT-2	Polyolefin (PO)	Heat Shrinkable	White	2.4 mm	25.4 mm	5.5 mm	6.4 mm	135 °C	-55 °C			0.25 in	0.22 in	1 in	0.09 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

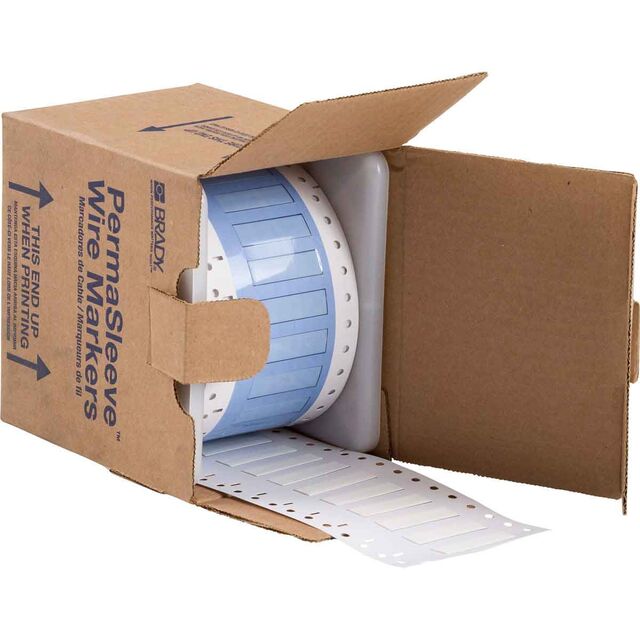

White Heat Shrinkable Label 1.50" W x 0.25" Dia (38.1mm x 6.4mm); Cable O.D. 0.09" ~ 0.22" (2.4mm ~ 5.5mm)

Technical documentation and resources

No documents available
