0190990038

Obsolete

Molex

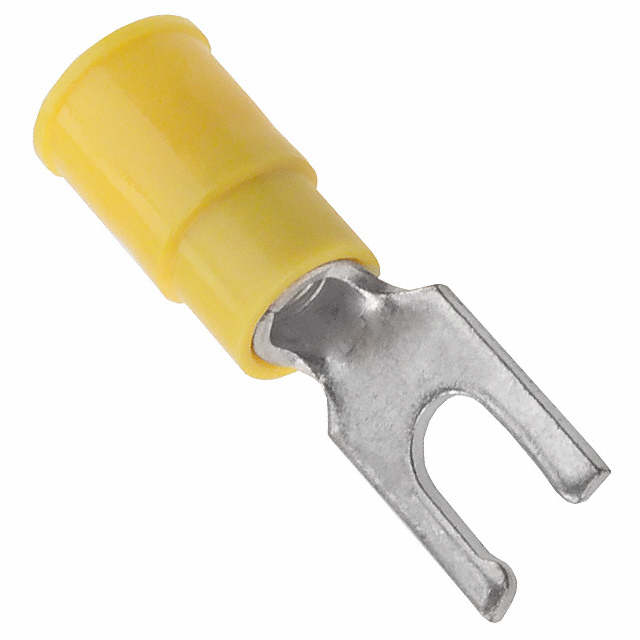

CONN SPADE TERM 10-12AWG #8 YEL

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec

0190990038

Obsolete

Molex

CONN SPADE TERM 10-12AWG #8 YEL

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190990038

Color	Yellow
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter	0.25 "
Insulation Diameter	6.35 mm
Length - Overall [x]	1.125 "
Length - Overall [x]	28.58 mm
Length - Ring Center to Termination [x]	0.305 "
Length - Ring Center to Termination [x]	7.75 mm
Length - Termination	13.97 mm
Length - Termination	0.55 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Tongue Inside Opening [x]	3.48 mm
Tongue Inside Opening [x]	0.137 in
Width - Outer Edges [y]	8.13 mm
Width - Outer Edges [y]	0.32 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

019099 Series

Part	Length - Ring Center to Termination	Length - Ring Center to Termination	Stud/Tab Size	Color	Length - Termination	Length - Termination	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Insulation Diameter	Termination	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Material - Insulation	Terminal Type	Contact Finish	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Mounting Type	Insulation	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Stud/Tab Size	Width - Outer Edges
Molex 0190990044	0.23 in	5.84 mm	6 Stud	Yellow	13.97 mm	0.55 in	Copper	12 AWG	10 AWG	0.25 "	6.35 mm	Crimp	0.955 in	24.26 mm	0.25 "	6.35 mm	Poly-Vinyl Chloride (PVC)	Snap Spring	Electro-Tin	2.9 mm	0.114 in	Free Hanging (In-Line)	Insulated
Molex 0190990034			10 Stud	Blue			Copper					Crimp	0.919 in	23.34 mm	0.33 in	8.38 mm	Poly-Vinyl Chloride (PVC)	Snap Spring	Electro-Tin	3.96 mm	0.156 in	Free Hanging (In-Line)	Insulated	6.63 mm	0.261 in	0.175 in	4.45 mm
Molex 0190990013				Red			Copper	22 AWG	17.5 AWG		3.68 mm	Crimp	0.871 in	22.12 mm	0.31 in		Poly-Vinyl Chloride (PVC)	Snap Spring	Electro-Tin	3.53 mm	0.139 in	Free Hanging (In-Line)	Insulated	6.63 mm	0.261 in	0.145 "		8 Stud	7.87 mm
Molex 0190990007	0.23 in	5.84 mm		Red			Copper	22 AWG	17.5 AWG		3.68 mm	Crimp	0.81 in	20.57 mm	0.25 "	6.35 mm	Poly-Vinyl Chloride (PVC)	Snap Spring	Electro-Tin	2.67 mm	0.105 in	Free Hanging (In-Line)	Insulated			0.145 "		5 Stud
Molex 0190990045	0.23 in	5.84 mm	6 Stud	Yellow	13.97 mm	0.55 in	Copper	12 AWG	10 AWG	0.25 "	6.35 mm	Crimp	0.955 in	24.26 mm	0.25 "	6.35 mm	Poly-Vinyl Chloride (PVC)	Snap Spring	Electro-Tin	2.9 mm	0.114 in	Free Hanging (In-Line)	Insulated
Molex 0190990038				Yellow	13.97 mm	0.55 in	Copper	12 AWG	10 AWG	0.25 "	6.35 mm	Crimp	1.125 "	28.58 mm	0.32 in	8.13 mm	Poly-Vinyl Chloride (PVC)	Snap Spring	Electro-Tin	3.48 mm	0.137 in	Free Hanging (In-Line)	Insulated	7.75 mm	0.305 "			8 Stud
Molex 0190990027	0.23 in	5.84 mm	6 Stud	Blue			Copper					Crimp	0.81 in	20.57 mm	0.25 "	6.35 mm	Poly-Vinyl Chloride (PVC)	Snap Spring	Electro-Tin	2.9 mm	0.114 in	Free Hanging (In-Line)	Insulated			0.175 in	4.45 mm
Molex 0190990077			6 Stud	Blue	13.72 mm	0.54 in	Copper					Crimp	0.95 in	24.13 mm	0.26 in	6.6 mm	Poly-Vinyl Chloride (PVC)	Snap Spring	Tin	3.66 mm	0.144 in	Free Hanging (In-Line)	Insulated	5.33 mm	0.21 in	0.22 "	5.59 mm
Molex 0190990035			10 Stud	Blue			Copper					Crimp	0.919 in	23.34 mm	0.33 in	8.38 mm	Poly-Vinyl Chloride (PVC)	Snap Spring	Electro-Tin	3.96 mm	0.156 in	Free Hanging (In-Line)	Insulated	6.63 mm	0.261 in	0.175 in	4.45 mm
Molex 0190990032				Blue			Copper					Crimp	0.871 in	22.12 mm	0.31 in		Poly-Vinyl Chloride (PVC)	Snap Spring	Electro-Tin	3.53 mm	0.139 in	Free Hanging (In-Line)	Insulated	6.63 mm	0.261 in	0.175 in	4.45 mm	8 Stud	7.87 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

019099 Series

Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet

Insulkrimp Rings, Spades Prod Spec

Datasheet
