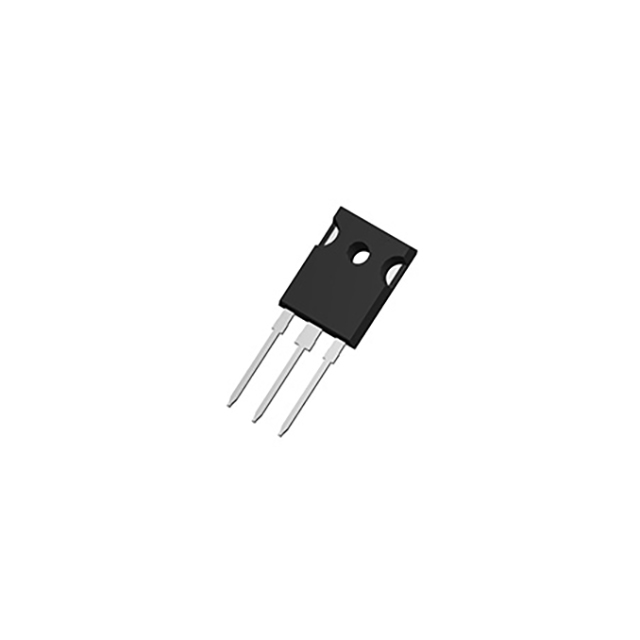

ADC4D10120D
ActiveAnalog Power Inc.
DIODE SIL SIC 1200V 9A TO247-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADC4D10120D
ActiveAnalog Power Inc.
DIODE SIL SIC 1200V 9A TO247-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADC4D10120D |
|---|---|
| Capacitance @ Vr, F | 6.3 pF |
| Current - Average Rectified (Io) | 9 A |
| Current - Reverse Leakage @ Vr | 2 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | TO-247-3 |
| Speed | No Recovery Time |
| Supplier Device Package | TO-247-3 |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 12.54 | |
| 10 | $ 11.04 | |||
| 100 | $ 9.55 | |||
| 500 | $ 8.66 | |||
| 1000 | $ 7.94 | |||
Description
General part information
ADC4D10120D
Diode 1200 V 9A Through Hole TO-247-3
