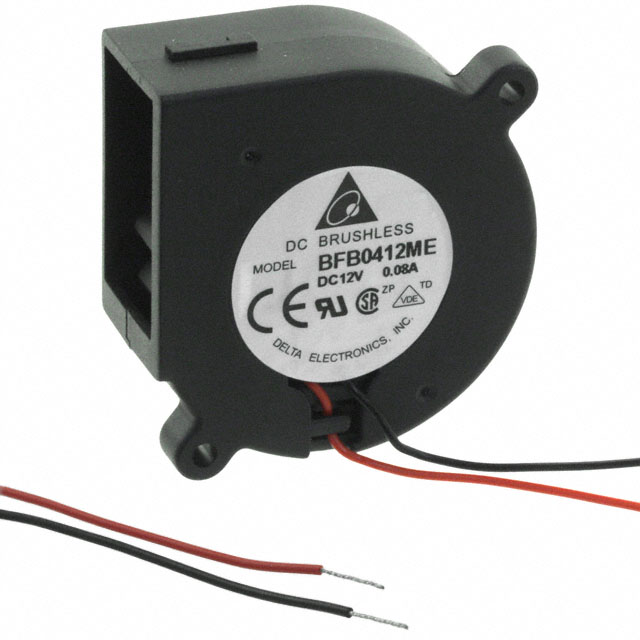

BFB0412ME

Obsolete

Delta Electronics

FAN BLOWER 42X18.5MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN BLOWER 42X18.5MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Lifetime @ Temp.	Weight	Weight	Material - Blade	Bearing Type	Width [x]	Material - Frame	Fan Type	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension	Size / Dimension [z]	Termination	RPM	Noise	Approval Agency
Delta Electronics BFB0412ME	70 °C	70 °C	-10 °C	-10 °C	50 mA	12 VDC	10 VDC	13.8 VDC	600 mW	50000 Hrs	22.23 g	0.049 lb	Plastic	Ball	18.5 mm	Plastic	Blower	58 Pa	0.233 in H2O	42 mm	Rectangular/Rounded	44.5 mm	2 Wire Leads	4500 RPM	30 dB(A)	CE CSA UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Blower 12VDC Rectangular/Rounded - 42mm L x 44.5mm H Ball 2.1 CFM (0.059m³/min) 2 Wire Leads
