B03B-PNISK-1A

Active

JST Sales America Inc.

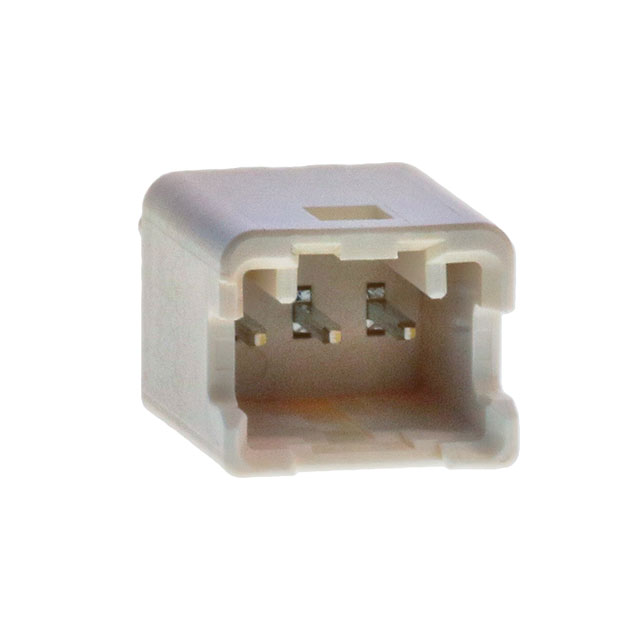

CONN HEADER VERT 3POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B03B-PNISK-1A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.402 in
Insulation Height	10.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	100 V

Part	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Current Rating (Amps)	Contact Type	Insulation Height	Insulation Height	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Connector Type	Material Flammability Rating	Insulation Color	Contact Shape	Number of Rows	Termination	Fastening Type	Mated Stacking Heights	Contact Material	Style	Number of Positions Loaded	Contact Finish - Post	Insulation Material
JST Sales America Inc. B03B-PNISK-1A	0.134 in	3.4 mm	Through Hole	3 A	Male Pin	0.402 in	10.2 mm	Board Guide	-25 °C	85 °C	100 V	0.079 in	2 mm	Shrouded - 4 Wall	Header	UL94 V-0	Natural	Square	1	Press-Fit Solder	Latch Lock	12.25 mm	Copper Alloy	Board to Cable/Wire	All	Tin	Polyamide (PA66) Nylon 6/6 Glass Filled
JST Sales America Inc. B03B-PNISK-1(LF)(SN)	0.134 in	3.4 mm	Through Hole	3 A	Male Pin	0.402 in	10.2 mm	Board Guide	-25 °C	85 °C	100 V	0.079 in	2 mm	Shrouded - 4 Wall	Header	UL94 V-0	Natural	Square	1	Press-Fit Solder	Latch Lock	12.25 mm	Copper Alloy	Board to Cable/Wire	All	Tin	Polybutylene Terephthalate (PBT) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 3 position 0.079" (2.00mm)
