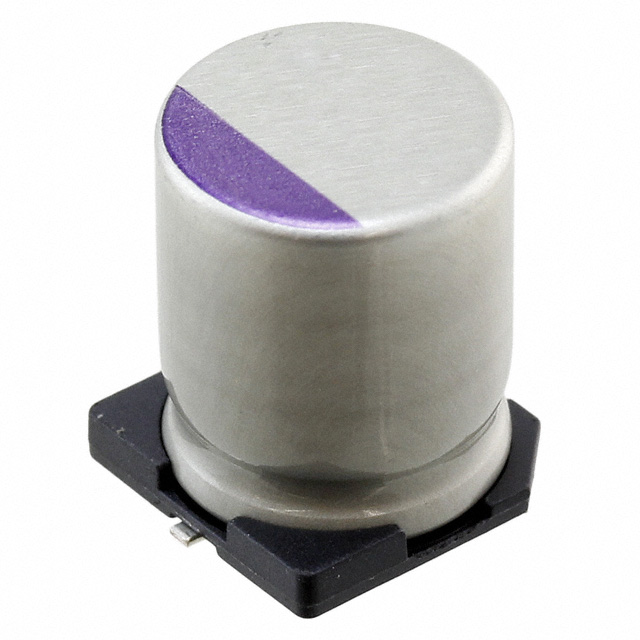

25SVP56M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 56UF 20% 25V SMD

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 56UF 20% 25V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	25SVP56M

Applications	General Purpose
Capacitance	56 µF
ESR (Equivalent Series Resistance)	28 mOhm
Height - Seated (Max) [Max] [z]	12.7 mm
Height - Seated (Max) [Max] [z]	0.5 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Surface Mount Land Size [x]	0.406 in
Surface Mount Land Size [x]	10.3 mm
Surface Mount Land Size [y]	10.3 mm
Surface Mount Land Size [y]	0.406 "
Tolerance	20 %
Type	Polymer
Voltage - Rated	25 VDC

Part	Voltage - Rated	Tolerance	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	ESR (Equivalent Series Resistance)	Package / Case	Mounting Type	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 25SVP56M	25 VDC	20 %	2000 Hrs	12.7 mm	0.5 in	105 ░C	-55 °C	56 µF	28 mOhm	Radial Can - SMD	Surface Mount	General Purpose	10 mm	0.394 in	10.3 mm	0.406 in	10.3 mm	0.406 "	Polymer
Panasonic Industrial Automation Sales 25SVP10M	25 VDC	20 %	2000 Hrs			105 ░C	-55 °C	10 µF	120 mOhm	Radial Can - SMD	Surface Mount	General Purpose	8 mm	0.315 "	8.3 mm	0.327 "	8.3 mm	0.327 in	Polymer	7 mm	0.276 "
Panasonic Industrial Automation Sales 25SVP33M	25 VDC	20 %	2000 Hrs	12 mm	0.472 "	105 ░C	-55 °C	33 ÁF	30 mOhms	Radial Can - SMD	Surface Mount	General Purpose	8 mm	0.315 "	8.3 mm	0.327 "	8.3 mm	0.327 in	Polymer
Panasonic Industrial Automation Sales 25SVP6R8M	25 VDC	20 %	2000 Hrs			105 ░C	-55 °C	6.8 ÁF	80 mOhm	Radial Can - SMD	Surface Mount	General Purpose	6.3 mm	0.248 in	6.6 mm	0.26 in	6.6 mm	0.26 in	Polymer	6 mm	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 28mOhm 2000 Hrs @ 105°C
