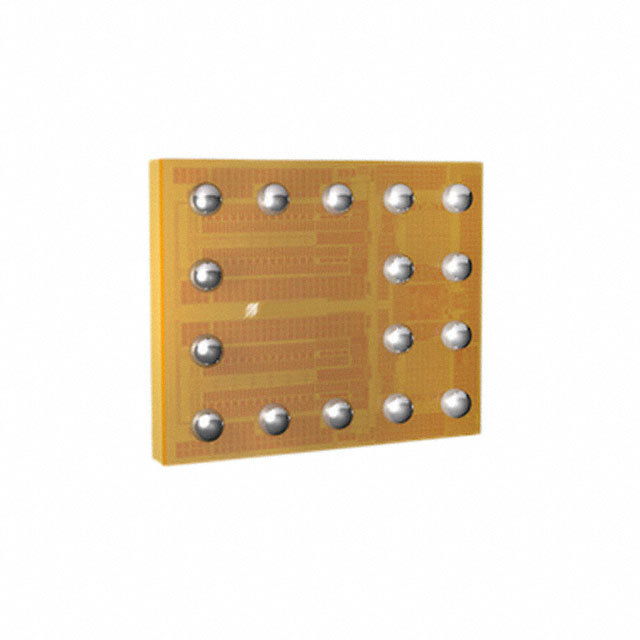

PE29101A-X

Obsolete

pSemi Corporation

IC GATE DRVR HALF-BRIDGE DIE

Search across all available documentation for this part.

Obsolete

pSemi Corporation

IC GATE DRVR HALF-BRIDGE DIE

Technical Specifications

Parameters and characteristics for this part

Specification	PE29101A-X

Channel Type	Synchronous
Current - Peak Output (Source, Sink) [custom]	4 A
Current - Peak Output (Source, Sink) [custom]	2 A
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET
Input Type	CMOS/TTL
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Die
Rise / Fall Time (Typ) [custom]	1 ns
Rise / Fall Time (Typ) [custom]	1 ns
Supplier Device Package	Die
Voltage - Supply [Max]	6.5 V
Voltage - Supply [Min]	4 V

Part	Number of Drivers	Driven Configuration	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Input Type	Package / Case	Channel Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Gate Type	Supplier Device Package
pSemi Corporation PE29101A-X	2	Half-Bridge	1 ns	1 ns	Surface Mount	-40 °C	125 ¯C	4 A	2 A	CMOS/TTL	Die	Synchronous	4 V	6.5 V	N-Channel MOSFET	Die

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Half-Bridge Gate Driver IC CMOS/TTL Die
