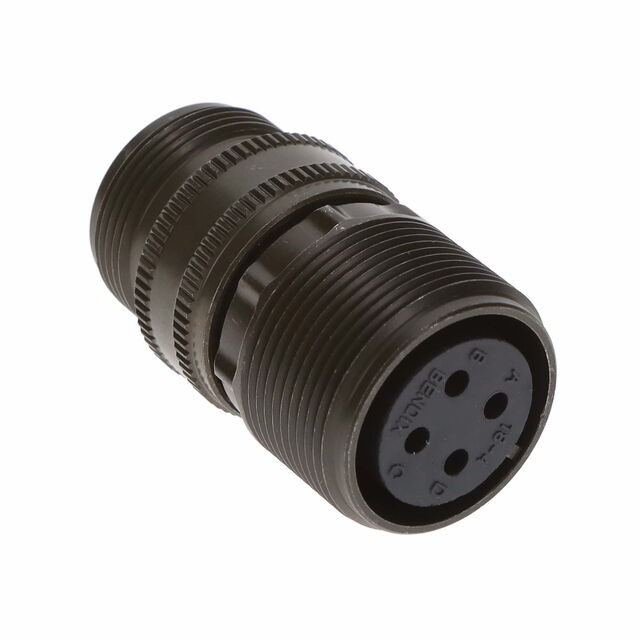

MS3101A18-4S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3101A18-4S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3101A18-4S |
|---|---|
| Applications | Military, Marine |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 18-4 |
| Shielding | Unshielded |
| Voltage Rating | 1250 VDC, 900 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 27.69 | |
| 10 | $ 24.25 | |||
| 25 | $ 23.20 | |||
| 50 | $ 22.45 | |||
| 100 | $ 21.70 | |||
| 250 | $ 20.51 | |||
| 500 | $ 19.91 | |||
Description
General part information
MS3101A18 Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
