09340032602

Active

HARTING Technology Group

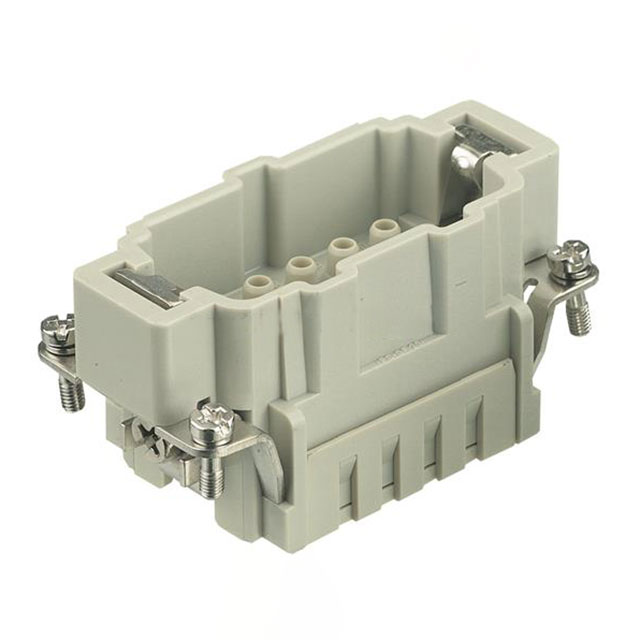

HAN HVE 3 POS. M INSERT CRIMP ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN HVE 3 POS. M INSERT CRIMP ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09340032602

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	3
Number of Positions [custom]	Ground
Number of Positions [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Crimp
Voltage Rating	630 V

Part	Color	Size	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Material	Termination Style	Contact Finish	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Housing Material	Gender	Voltage Rating	Contact Type	Connector Type
HARTING Technology Group 09340032616	Gray	10B	125 °C	-40 °C	16 A	Copper Alloy	Push In	Silver	UL94 V-0	3	Ground	2	Polycarbonate (PC)	Male	830 V
HARTING Technology Group 09340032602	Gray	10B	125 °C	-40 °C	16 A		Crimp		UL94 V-0	3	Ground	2	Polycarbonate (PC)	Male	630 V	Han®	Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 3+2+Ground Position Crimp
