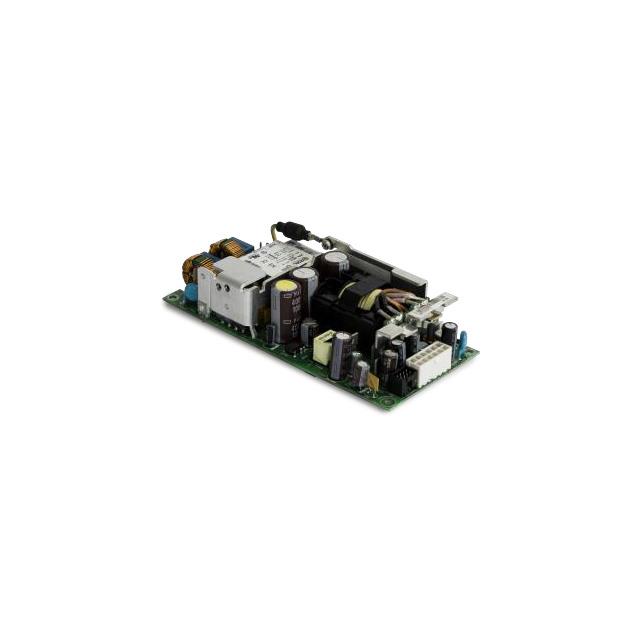

ABC401-1012

EOS Power India Private Ltd

AC/DC CONVERTER 12V 400W

Search across all available documentation for this part.

EOS Power India Private Ltd

AC/DC CONVERTER 12V 400W

Technical Specifications

Parameters and characteristics for this part

Specification	ABC401-1012

Applications	ITE (Commercial)
Approval Agency	cURus, DEMKO, CE
Current - Output 1	33.3 A
Efficiency	94 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	6.46 "
Size / Dimension [x]	164.2 mm
Size / Dimension [y]	76 mm
Size / Dimension [y]	2.99 in
Size / Dimension [z]	37.7 mm
Size / Dimension [z]	1.48 "
Standard Number	60950-1
Type	Open Frame
Voltage - Input [Max]	270 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 170 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	Number of Outputs	Standard Number	Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Approval Agency	Applications	Features	Current - Output 1	Voltage - Output 1	Mounting Type	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]
EOS Power India Private Ltd ABC401-1024	1	60950-1	Open Frame	401 W	50 °C	-20 °C	94 %	CE cURus DEMKO	ITE (Commercial)	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	16.7 A	24 V	Chassis Mount	4000 V	76 mm	37.7 mm	6.46 "	2.99 in	1.48 "	164.2 mm	264 VAC 270 VDC	90 VAC 170 VDC
EOS Power India Private Ltd ABC401-1012	1	60950-1	Open Frame		50 °C	-20 °C	94 %	CE cURus DEMKO	ITE (Commercial)	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	33.3 A	12 V	Chassis Mount	4000 V	76 mm	37.7 mm	6.46 "	2.99 in	1.48 "	164.2 mm	264 VAC 270 VDC	90 VAC 170 VDC
EOS Power India Private Ltd ABC401-1012-S	1	60950-1	Enclosed		50 °C	-20 °C	94 %	CE cURus DEMKO	ITE (Commercial)	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	33.3 A	12 V	Chassis Mount	4000 V	3.32 in 84.4 mm	1.61 in 41 mm				7.11 in 180.5 mm	264 VAC 270 VDC	90 VAC 170 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC, 170 ~ 270 VDC Input
