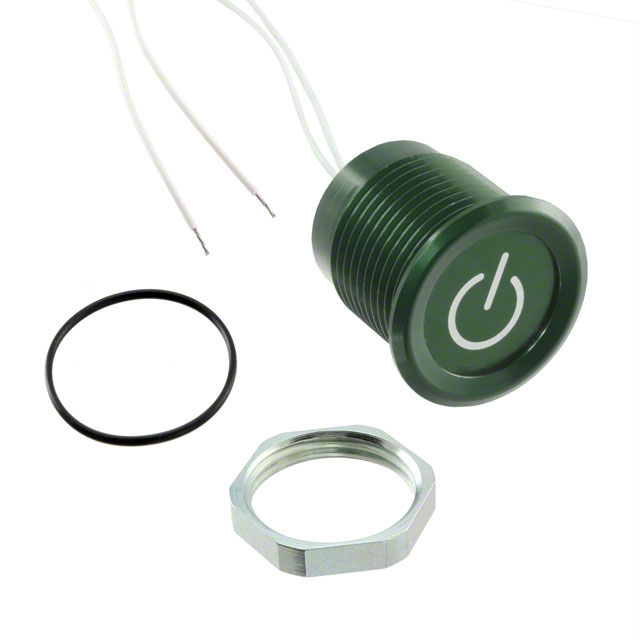

1241.2904.042

Obsolete

SCHURTER Inc.

SWITCH PUSH SPST-NO 100MA 42V GN

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

SWITCH PUSH SPST-NO 100MA 42V GN

Technical Specifications

Parameters and characteristics for this part

Specification	1241.2904.042

Actuator Marking	* (Embossed)
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	100 mA
Electrical Life	20000000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	20000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	21.15 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Piezo
Voltage Rating - AC	42 V
Voltage Rating - DC	60 VDC

Part	Termination Style	Color - Actuator/Cap	Electrical Life	Circuit	Features	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Ingress Protection	Actuator Marking	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Switch Function	Mechanical Life	Actuator Type	Type	Operating Temperature [Min]	Operating Temperature [Max]
SCHURTER Inc. 1241.2904.042	Wire Leads	Green	20000000 Cycles	SPST-NO	Epoxy Sealed Terminals	42 V	60 VDC	Panel Mount Front	IP67 - Dust Tight Waterproof	* (Embossed)	100 mA	21.15 mm	Off-Mom	20000000 Cycles	Button Flush Round	Anti-Vandal Piezo	-20 C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NO Piezo, Anti-Vandal Panel Mount, Front
