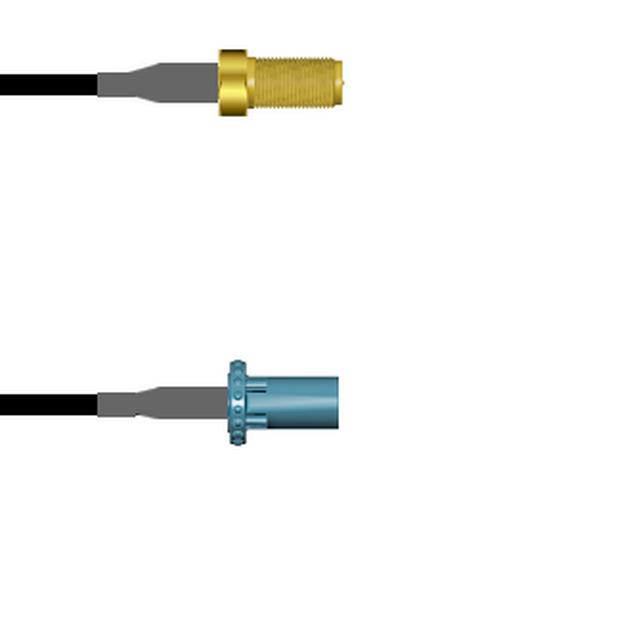

Q-7105A00030.5M
ActiveAmphenol Custom Cable
CBL ASSY SMA-FAKRA II J-P 19.69"
Deep-Dive with AI
Search across all available documentation for this part.
Q-7105A00030.5M
ActiveAmphenol Custom Cable
CBL ASSY SMA-FAKRA II J-P 19.69"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-7105A00030.5M |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Fakra II (Gen 2.0) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 50 cm |
| Length | 19.69 " |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to Fakra II |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 44.93 | |
| 25 | $ 44.06 | |||
| 50 | $ 43.18 | |||
| 100 | $ 42.31 | |||
| 250 | $ 41.43 | |||
Description
General part information
Q-7105A0 Series
Cable Assembly Coaxial RP-SMA to Fakra II RG-174 19.69" (500.00mm)
Documents
Technical documentation and resources
No documents available
