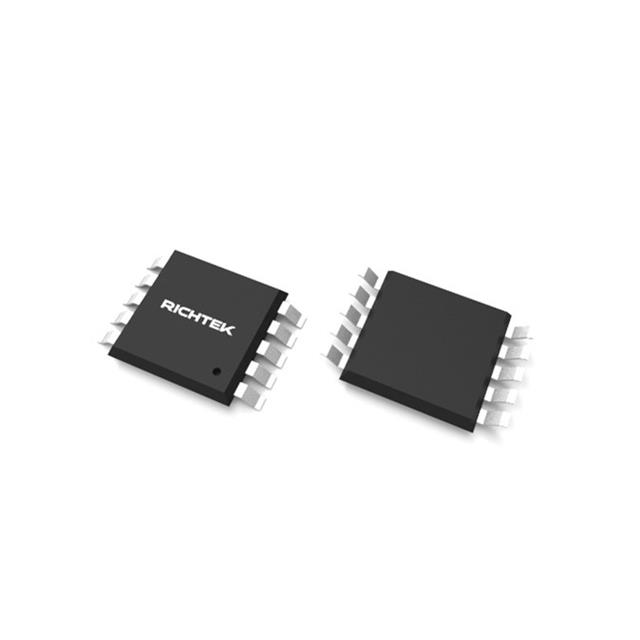

RTQ6056GF
ActiveRichtek USA Inc.
IC CURRENT SENSE 0.02% 10MSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTQ6056GF
ActiveRichtek USA Inc.
IC CURRENT SENSE 0.02% 10MSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTQ6056GF |
|---|---|
| Accuracy | 0.02 % |
| Function | Current Sense |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-MSOP, 10-TFSOP |
| Package / Case [x] | 3 mm |
| Package / Case [x] | 0.118 in |
| Sensing Method | High/Low-Side |
| Supplier Device Package | 10-MSOP |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.99 | |
| 10 | $ 2.68 | |||
| 25 | $ 2.54 | |||
| 100 | $ 2.20 | |||
| 250 | $ 2.09 | |||
| 500 | $ 1.87 | |||
| 1000 | $ 1.58 | |||
| Digi-Reel® | 1 | $ 2.99 | ||
| 10 | $ 2.68 | |||
| 25 | $ 2.54 | |||
| 100 | $ 2.20 | |||
| 250 | $ 2.09 | |||
| 500 | $ 1.87 | |||
| 1000 | $ 1.58 | |||
| Tape & Reel (TR) | 2500 | $ 1.50 | ||
| 5000 | $ 1.44 | |||
Description
General part information
RTQ6056 Series
Current Sense Regulator High/Low-Side 10-MSOP
