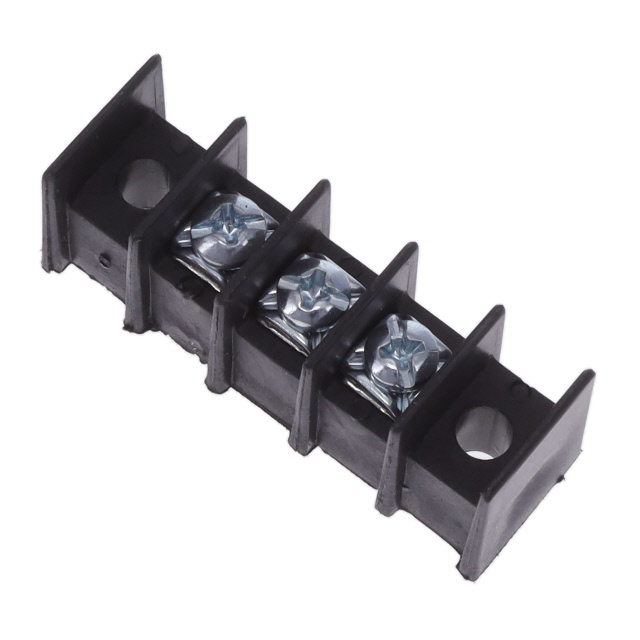

T38001-03-0

Active

Curtis Industries

CONN BARRIER STRIP 3CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T38001-03-0

Active

Curtis Industries

CONN BARRIER STRIP 3CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T38001-03-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	3
Number of Rows	1
Number of Wire Entries	3
Operating Temperature	105 C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

T38001 Series

Part	Voltage Rating	Mounting Type	Current Rating (Amps)	Number of Rows	Bottom Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Number of Wire Entries	Material Flammability Rating	Material - Insulation	Features	Terminal Block Type	Number of Circuits [custom]	Top Termination	Barrier Type	Operating Temperature	Number of Circuits	Number of Wire Entries [custom]
Curtis Industries T38001-08-0	300 VDC	Chassis Panel	20 A	1	Closed	12 AWG	22 AWG	9.53 mm	0.375 in	8	UL94 V-0	Polypropylene (PP)	Flange	Barrier Block	8	Screws with Captive Plate	2 Wall (Dual)	105 C
Curtis Industries T38001-12-0	300 VDC	Chassis Panel	20 A	1	Closed	12 AWG	22 AWG	9.53 mm	0.375 in	12	UL94 V-0	Polypropylene (PP)	Flange	Barrier Block		Screws with Captive Plate	2 Wall (Dual)	105 C	12
Curtis Industries T38001-03-0	300 VDC	Chassis Panel	20 A	1	Closed	12 AWG	22 AWG	9.53 mm	0.375 in	3	UL94 V-0	Polypropylene (PP)	Flange	Barrier Block		Screws with Captive Plate	2 Wall (Dual)	105 C	3
Curtis Industries T38001-22-0	300 VDC	Chassis Panel	20 A	1	Closed	12 AWG	22 AWG	9.53 mm	0.375 in		UL94 V-0	Polypropylene (PP)	Flange	Barrier Block		Screws with Captive Plate	2 Wall (Dual)	105 C	22	22
Curtis Industries T38001-09-0	300 VDC	Chassis Panel	20 A	1	Closed	12 AWG	22 AWG	9.53 mm	0.375 in	9	UL94 V-0	Polypropylene (PP)	Flange	Barrier Block		Screws with Captive Plate	2 Wall (Dual)	105 C
Curtis Industries T38001-10-0	300 VDC	Chassis Panel	20 A	1	Closed	12 AWG	22 AWG	9.53 mm	0.375 in	10	UL94 V-0	Polypropylene (PP)	Flange	Barrier Block		Screws with Captive Plate	2 Wall (Dual)	105 C	10
Curtis Industries T38001-21-0	300 VDC	Chassis Panel	20 A	1	Closed	12 AWG	22 AWG	9.53 mm	0.375 in	21	UL94 V-0	Polypropylene (PP)	Flange	Barrier Block		Screws with Captive Plate	2 Wall (Dual)	105 C	21
Curtis Industries T38001-14-0	300 VDC	Chassis Panel	20 A	1	Closed	12 AWG	22 AWG	9.53 mm	0.375 in	14	UL94 V-0	Polypropylene (PP)	Flange	Barrier Block		Screws with Captive Plate	2 Wall (Dual)	105 C	14
Curtis Industries T38001-13-0	300 VDC	Chassis Panel	20 A	1	Closed	12 AWG	22 AWG	9.53 mm	0.375 in	13	UL94 V-0	Polypropylene (PP)	Flange	Barrier Block		Screws with Captive Plate	2 Wall (Dual)	105 C	13
Curtis Industries T38001-24-0	300 VDC	Chassis Panel	20 A	1	Closed	12 AWG	22 AWG	9.53 mm	0.375 in		UL94 V-0	Polypropylene (PP)	Flange	Barrier Block		Screws with Captive Plate	2 Wall (Dual)	105 C	24

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.08
		10	$ 2.34
		25	$ 2.20
		50	$ 1.95
		100	$ 1.91
		250	$ 1.76
		500	$ 1.59
		1000	$ 1.41
		5000	$ 1.33

Description

General part information

T38001 Series

3 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available
