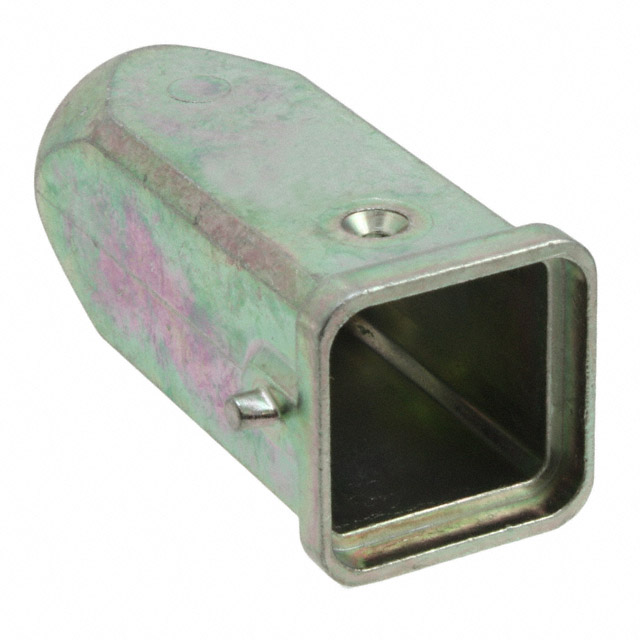

09620031440
ActiveHARTING Technology Group
ENCLOSURE FOR CONNECTORS: HDC; SIZE 3A; FOR CABLE; FOR LATCH; EMC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09620031440 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Material | Zinc, Die Cast |
| Ingress Protection | IP44 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 3 A |
| Size / Dimension [x] | 1.063 in |
| Size / Dimension [x] | 27 mm |
| Size / Dimension [y] | 28 mm |
| Size / Dimension [y] | 1.102 in |
| Size / Dimension [z] | 60 mm |
| Size / Dimension [z] | 2.362 " |
| Style | Top Entry |
| Thread Size | PG11 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09620031 Series
Hood Connector Top Entry PG11 3A IP44
