MXC6655XA
ActiveMemsic Inc.
DIGITAL THREE-AXIS ACCELEROMETER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MXC6655XA
ActiveMemsic Inc.
DIGITAL THREE-AXIS ACCELEROMETER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MXC6655XA |
|---|---|
| Acceleration Range | 4 g, 8 g |
| Acceleration Range [Max] | 2 g |
| Acceleration Range [Min] | -2 g |
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Bandwidth | 50 Hz |
| Features | Temperature Sensor |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I2C |

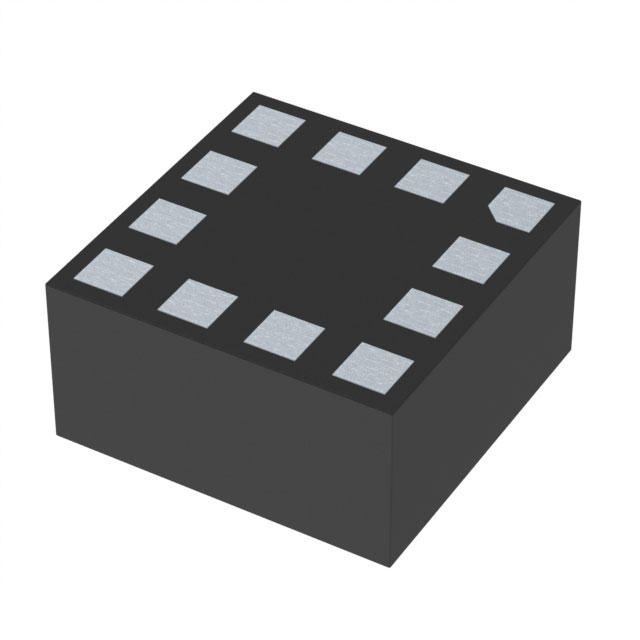

| Package / Case | 12-VFLGA |
| Sensitivity (LSB/g) | 1024 LSB/g, 256 LSB/g |
| Supplier Device Package | 12-LGA (2x2) |
| Type | Digital |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.70 | |
| 10 | $ 1.27 | |||
| 25 | $ 1.02 | |||
| 100 | $ 0.93 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.70 | |||
| Digi-Reel® | 1 | $ 1.70 | ||
| 10 | $ 1.27 | |||
| 25 | $ 1.02 | |||
| 100 | $ 0.93 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.70 | |||
| Tape & Reel (TR) | 3000 | $ 0.68 | ||
| 6000 | $ 0.64 | |||
| 9000 | $ 0.60 | |||
| 15000 | $ 0.58 | |||
Description
General part information
MXC6655 Series
Accelerometer X, Y, Z Axis ±2g, 4g, 8g 50Hz 12-LGA (2x2)
