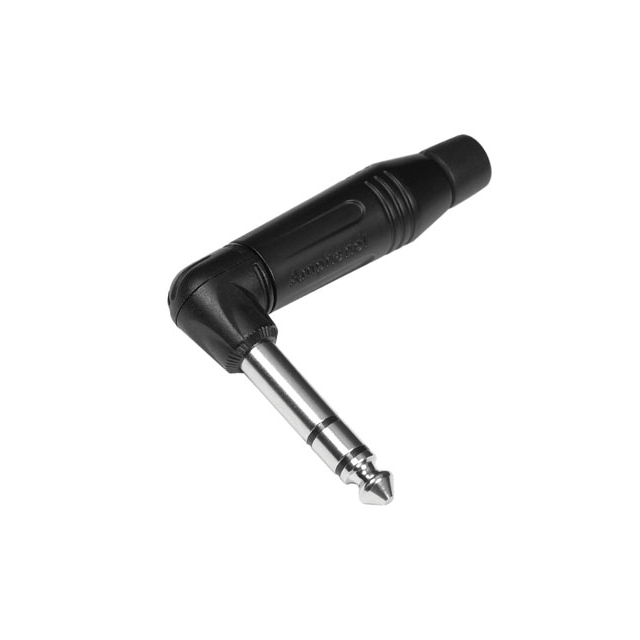

ACPS-RB BULK

Active

Amphenol Sine Systems Corp

1/4" R SERIES PHONE 90' STEREO N

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

1/4" R SERIES PHONE 90' STEREO N

Technical Specifications

Parameters and characteristics for this part

Specification	ACPS-RB BULK

Actual Diameter [diameter]	0.249 in
Actual Diameter [diameter]	6.32 mm
Body Color	Silver, Black
Cable Opening [Max] [custom]	6.5 mm
Cable Opening [Max] [custom]	0.256 in
Cable Opening [Min] [custom]	0.118 in
Cable Opening [Min] [custom]	3 mm
Connector Type	Phone Plug
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Zinc Die Cast
Internal Switch(s)	False
Mating Length/Depth	30.61 mm
Mating Length/Depth	1.205 in
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)

Part	Signal Lines	Contact Material	Contact Material - Plating [custom]	Mating Length/Depth	Mating Length/Depth	Body Color	Current Rating (Amps)	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Housing Material	Connector Type	Termination	Gender	Mounting Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Actual Diameter [diameter]	Actual Diameter [diameter]	Internal Switch(s)
Amphenol Sine Systems Corp ACPS-RB BULK	Stereo	Brass	Nickel	30.61 mm	1.205 in	Black Silver	10 A	Unshielded	0.118 in	6.5 mm	3 mm	0.256 in	Zinc Die Cast	Phone Plug	Solder Eyelet(s)	Male	Free Hanging (In-Line) Right Angle	3	3	70 °C	-25 °C	0.249 in	6.32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 4.46

General part information

6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
