UCQS30A045-TE24L2

Active

Kyocera AVX

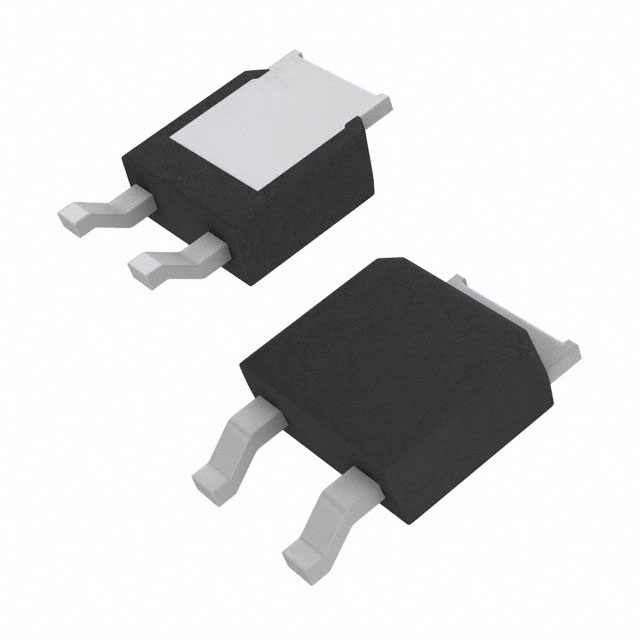

DIODE ARR SCHOTT 45V 30A TO263LP

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE ARR SCHOTT 45V 30A TO263LP

Technical Specifications

Parameters and characteristics for this part

Specification	UCQS30A045-TE24L2

Current - Average Rectified (Io) (per Diode)	30 A
Current - Reverse Leakage @ Vr	1 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-263LP
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	550 mV

Part	Speed	Supplier Device Package	Mounting Type	Current - Reverse Leakage @ Vr	Technology	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]
Kyocera AVX UCQS30A045-TE24L2	200 mA 500 ns	TO-263LP	Surface Mount	1 mA	Schottky	1 Pair Common Cathode	30 A	550 mV	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	150 °C	-40 °C	45 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 45 V 30A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
