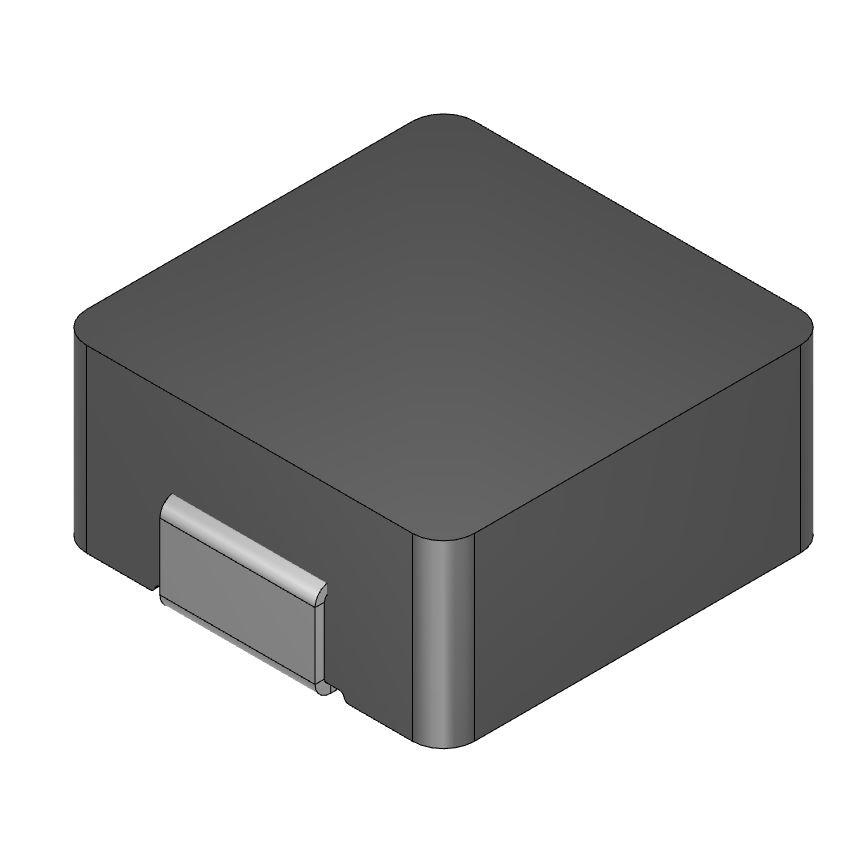

CMLS041B-R10MS
ActiveDelta Electronics/Cyntec
FIXED IND 100NH 15A 6 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMLS041B-R10MS
ActiveDelta Electronics/Cyntec
FIXED IND 100NH 15A 6 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMLS041B-R10MS |
|---|---|
| Current - Saturation (Isat) | 21 A |
| Current Rating (Amps) | 15 A |
| DC Resistance (DCR) [Max] | 6 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 100 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 4.4 mm |
| Size / Dimension [x] | 0.173 in |
| Size / Dimension [y] | 0.165 in |
| Size / Dimension [y] | 4.2 mm |
| Tolerance | 3 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.64 | |
Description
General part information
CMLS041B Series
100 nH Shielded Inductor 15 A 6mOhm Max Nonstandard
