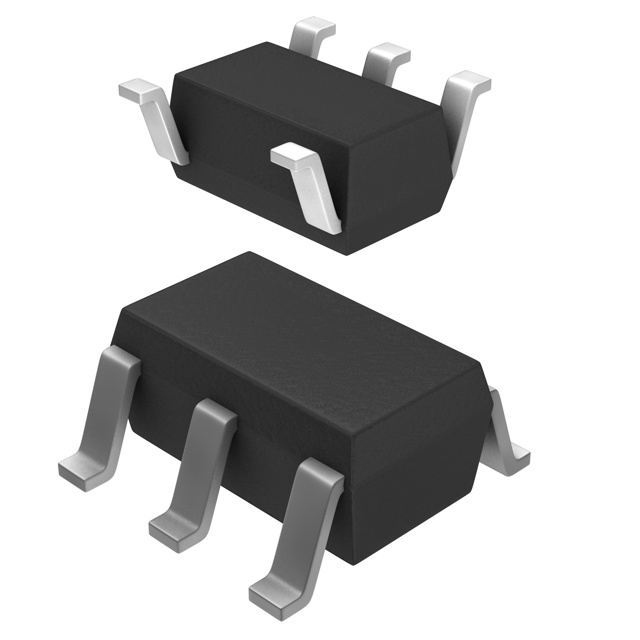

SC553ISKTRT

Obsolete

Semtech Corporation

IC REG LIN POS ADJ 150MA SOT23-5

Search across all available documentation for this part.

Obsolete

Semtech Corporation

IC REG LIN POS ADJ 150MA SOT23-5

Technical Specifications

Parameters and characteristics for this part

Specification	SC553ISKTRT

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	160 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	SC-74A, SOT-753
Protection Features	Over Temperature, Reverse Polarity, Over Current
Supplier Device Package	SOT-23-5
Voltage - Input (Max) [Max]	6.5 V
Voltage - Output (Min/Fixed)	1.25 V
Voltage Dropout (Max) [Max]	0.23 V

Part	Output Type	Current - Quiescent (Iq)	Number of Regulators	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Supplier Device Package	Voltage Dropout (Max) [Max]	Current - Output	Output Configuration	Protection Features	Control Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
Semtech Corporation SC553ISKTRT	Adjustable	160 µA	1	6.5 V	1.25 V	SOT-23-5	0.23 V	150 mA	Positive	Over Current Over Temperature Reverse Polarity	Enable	Surface Mount	125 °C	-40 °C	SC-74A SOT-753

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA SOT-23-5

Technical documentation and resources

No documents available
