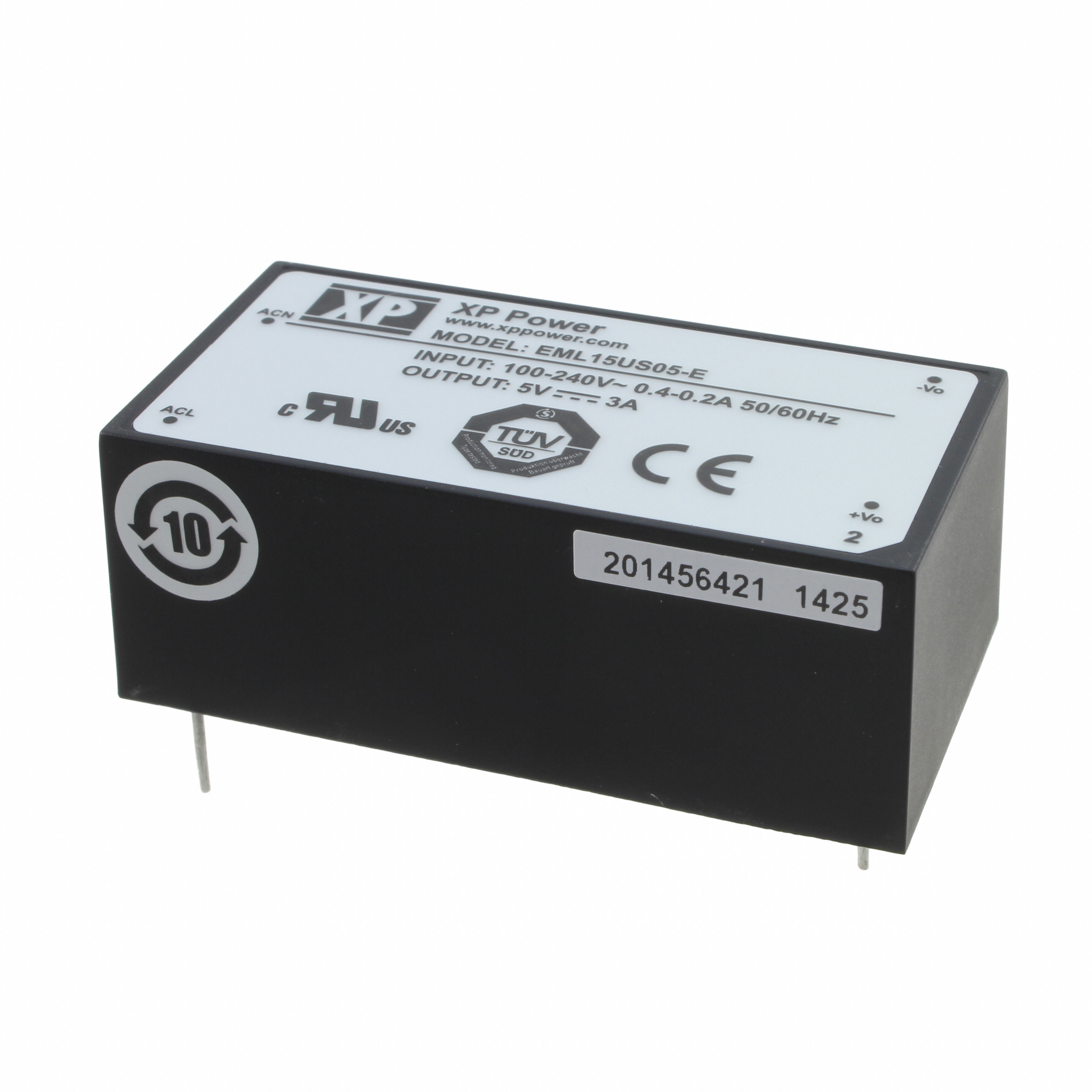

EML15US05-E

Active

XP POWER

AC/DC CONVERTER 5V 15W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 5V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Features	Package / Case	Weight	Weight	Voltage - Output 1	Power (Watts)	Load Regulation	Approval Agency	Standard Number	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Current - Output (Max) [Max]	Type	Line Regulation	Efficiency	Size / Dimension [y]	Size / Dimension [z]
XP POWER EML15US05-E	Through Hole	65 mm	33.3 mm	1.31 "	2.56 in	0.96 "	24.4 mm	Universal Input	4-DIP Module	90.72 g	0.2 lb	5 V	15 W	1 %	CE cULus TUV	60601-1	1	-20 °C	70 °C	Medical	3 A	Enclosed	0.5 %	78 %
XP POWER EML15US05-P	Through Hole	62 mm		1.21 in	2.44 in	0.96 "		Universal Input	4-DIP Module	31.75 g	0.07 lb	5 V	15 W	1 %	CE cULus TUV	60601-1	1	-20 °C	70 °C	Medical	3 A	Open Frame	0.5 %	78 %	30.7 mm	24.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 5V 3A 85 ~ 264 VAC Input
