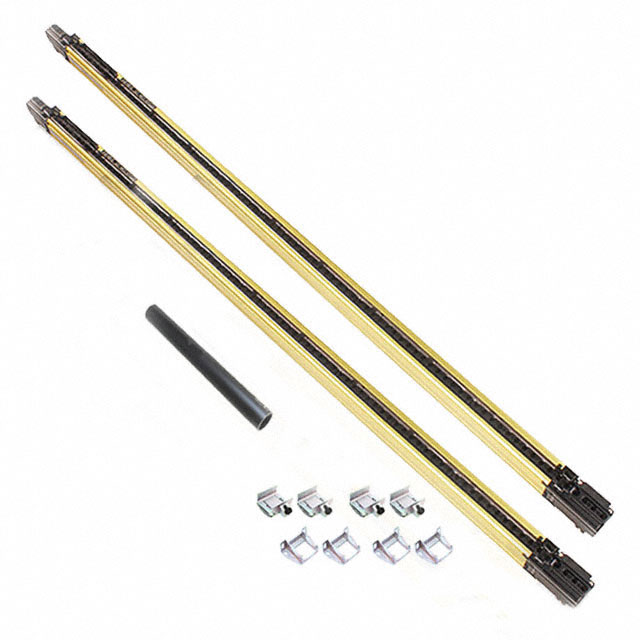

SF4B-H80-01(V2)

Obsolete

Panasonic Industrial Automation Sales

LIGHT CURTAIN HAND 25MM

Deep-Dive with AI

Search across all available documentation for this part.

SF4B-H80-01(V2)

Obsolete

Panasonic Industrial Automation Sales

LIGHT CURTAIN HAND 25MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF4B-H80-01(V2)

Beam Pitch	20 mm
Detection Capability	25 mm
Features	Blanking, Muting Function
Ingress Protection	IP67, IP65
Number of Beams	80
Operating Range [Max]	7 m
Operating Range [Min]	0.3 m
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Protection	Hand
Protective Height	1590 mm
Voltage - Supply	24 VDC

SF4B Series

Part	Number of Beams [custom]	Detection Capability	Voltage - Supply	Protection	Beam Pitch	Ingress Protection	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operating Range [Max]	Operating Range [Min]	Features	Number of Beams	Protective Height [z]	Protective Height	Protective Height [custom]
Panasonic Industrial Automation Sales SF4B-H24G(V2)	24	25 mm	24 VDC	Hand	20 mm	IP65 IP67	55 °C	-10 °C	9 m	0.3 m	Blanking Muting Function
Panasonic Industrial Automation Sales SF4B-F31G(V2)		14 mm	24 VDC	Finger	10 mm	IP65 IP67	55 °C	-10 °C	7 m	0.3 m	Blanking Muting Function	31	324 mm
Panasonic Industrial Automation Sales SF4B-F23G(V2)		14 mm	24 VDC	Finger	10 mm	IP65 IP67	55 °C	-10 °C	7 m	0.3 m	Blanking Muting Function	23	244 mm
Panasonic Industrial Automation Sales SF4B-A44G(V2)		45 mm	24 VDC	Arm/Foot	40 mm	IP65 IP67	55 °C	-10 °C	7 m	0.3 m	Blanking Muting Function	44		1764 mm
Panasonic Industrial Automation Sales SF4B-H72G-01(V2)		25 mm	24 VDC	Hand	20 mm	IP65 IP67	55 °C	-10 °C	7 m	0.3 m	Blanking Muting Function	72			1444 mm
Panasonic Industrial Automation Sales SF4B-A24C	24	45 mm	24 VDC	Arm/Foot	40 mm	IP65 - Dust Tight Water Resistant	55 °C	-10 °C	7 m	0.3 m	Blanking Muting Function		983 mm
Panasonic Industrial Automation Sales SF4B-H72CA-J05		25 mm	24 VDC	Hand	20 mm	IP65 - Dust Tight Water Resistant	55 °C	-10 °C	7 m	0.3 m	Blanking Muting Function	72	1463 mm
Panasonic Industrial Automation Sales SF4B-H88G(V2)		25 mm	24 VDC	Hand	20 mm	IP65 IP67	55 °C	-10 °C	7 m	0.3 m	Blanking Muting Function	88		1764 mm
Panasonic Industrial Automation Sales SF4B-H80-01(V2)		25 mm	24 VDC	Hand	20 mm	IP65 IP67	55 °C	-10 °C	7 m	0.3 m	Blanking Muting Function	80		1590 mm
Panasonic Industrial Automation Sales SF4B-A18G(V2)	18	45 mm	24 VDC	Arm/Foot	40 mm	IP65 IP67	55 °C	-10 °C	9 m	0.3 m	Blanking Muting Function		724 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SF4B Series

Light Curtain 25mm Hand Blanking, Muting Function

Documents

Technical documentation and resources

No documents available
