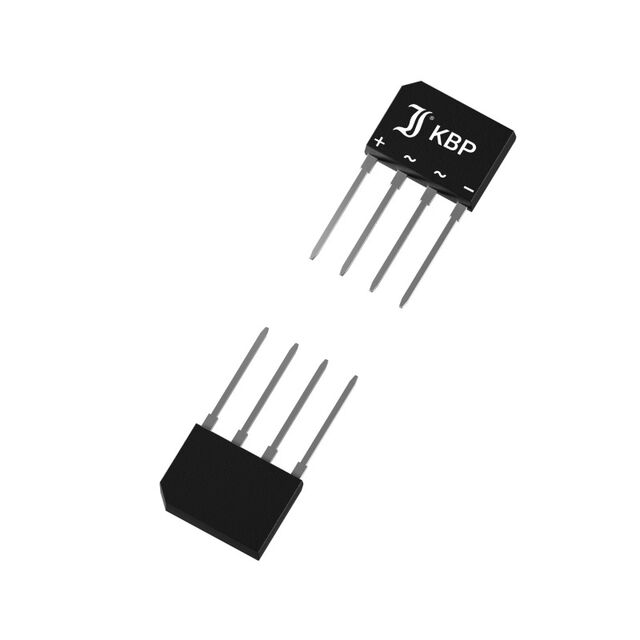

KBP302G
ActiveDiotec Semiconductor
BRIDGE 1-PH KBP 200V 3A 150DEG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KBP302G
ActiveDiotec Semiconductor
BRIDGE 1-PH KBP 200V 3A 150DEG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KBP302G |
|---|---|
| Current - Average Rectified (Io) | 1.8 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | 4-SIP, KBP |
| Supplier Device Package | KBP |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.27 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.10 | |||
| 5000 | $ 0.10 | |||
| Tube | 1400 | $ 0.16 | ||
Description
General part information
KBP302 Series
Bridge Rectifier Single Phase Standard 200 V Through Hole KBP
