K155-1050-00

Active

Jacob GmbH

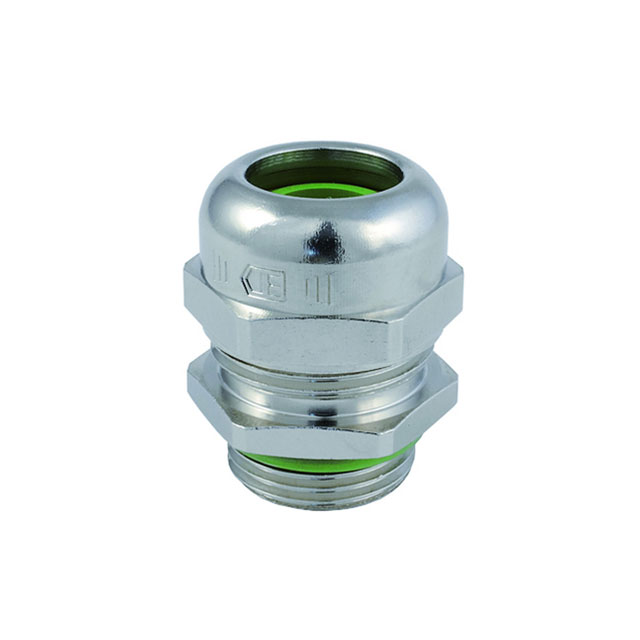

CABLE GLAND 32-42MM M50 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 32-42MM M50 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	K155-1050-00

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP69, IP67, IP66
Material	Brass, Nickel Plated
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	42 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.654 in
Outside Cable Diameter (Min) [Min] [diameter]	1.26 "
Outside Cable Diameter (Min) [Min] [diameter]	32 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M50x1.5
Type	Cable Gland

Part	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Color	Ingress Protection	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Jacob GmbH K155-1050-00	M50x1.5	42 mm	1.654 in	Brass Nickel Plated	Silver	IP66 IP67 IP69	10 mm	0.394 in	200 °C	-40 °C	O-Ring Seal	Cable Gland	1.26 "	32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	5	$ 77.13

General part information

Cable Gland Brass, Nickel Plated M50x1.5 Silver
