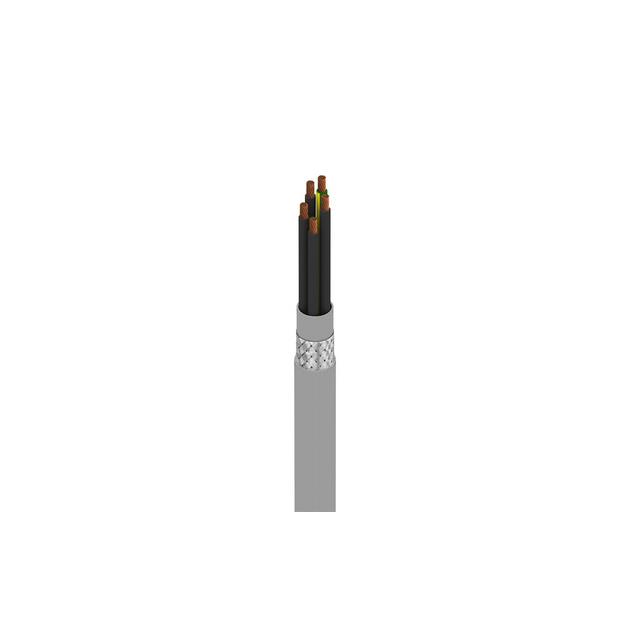

73805WS 0081000
ActiveBelden Inc.
CABLE 5CON 18AWG GRAY SHLD FEET
Deep-Dive with AI
Search across all available documentation for this part.
73805WS 0081000
ActiveBelden Inc.
CABLE 5CON 18AWG GRAY SHLD FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 73805WS 0081000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Features | Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.414 in |
| Jacket (Insulation) Diameter [diameter] | 10.52 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 5 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -5 °C |
| Ratings | UL Style 2587 |
| Shield Coverage | 85 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 600 V |
| Wire Gauge | 18 AWG |
73805WS Series
| Part | Conductor Material | Number of Conductors | Cable Type | Conductor Insulation | Voltage | Ratings | Spool Size | Spool Size | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Material | Length | Shield Material | Features | Jacket Color | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. | Copper Bare | 5 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 600 V | UL Style 2587 | 1000 ft | 304.8 m | 85 % | 90 °C | -5 °C | 0.889 mm | 0.035 in | 0.414 in | 10.52 mm | 18 AWG | Poly-Vinyl Chloride (PVC) | Enter Number of Feet in Order Quantity | Copper Tinned | Oil Resistant | Gray | Braid | 16 | 30 AWG | ||
Belden Inc. | Copper Bare | 5 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 600 V | UL Style 2587 | 85 % | 90 °C | -5 °C | 0.889 mm | 0.035 in | 0.414 in | 10.52 mm | 18 AWG | Poly-Vinyl Chloride (PVC) | Copper Tinned | Oil Resistant | Gray | Braid | 16 | 30 AWG | 30.5 m | 100 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 6.14 | |
| 2 | $ 5.85 | |||
| 3 | $ 5.69 | |||
| 5 | $ 5.49 | |||
| 7 | $ 5.36 | |||
| 10 | $ 5.22 | |||
| 25 | $ 4.89 | |||
| 50 | $ 4.65 | |||
| 100 | $ 4.43 | |||
Description
General part information
73805WS Series
5 Conductor Multi-Conductor Cable Gray 18 AWG Braid Enter Number of Feet in Order Quantity
