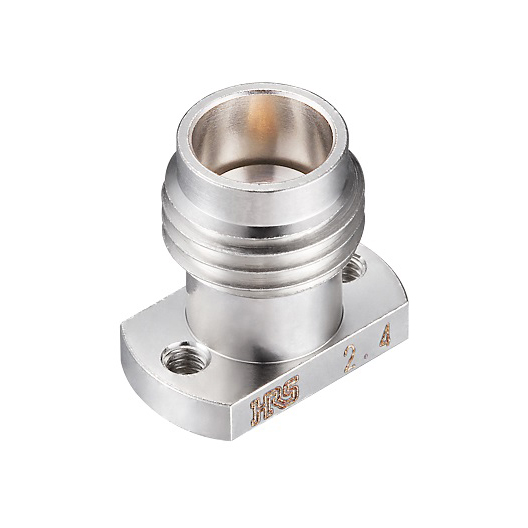

H2.4-R-SR2-SA(15)

Active

Hirose Electric USA, Inc.

RECEPTACLE, MIL, 1POS., SCREW FI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

H2.4-R-SR2-SA(15)

Active

Hirose Electric USA, Inc.

RECEPTACLE, MIL, 1POS., SCREW FI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H2.4-R-SR2-SA(15)

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	50 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Screw

H2.4 Series

Part	Mounting Type	Includes	Number of Ports	Body Material	Dielectric Material	Connector Type	Frequency - Max [Max]	Mounting Feature	Impedance	Center Contact Material	Contact Termination	Features	Center Contact Plating	Housing Color	Connector Style	Connector Style	Connector Style	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Body Finish	Frequency Range [Min]	Frequency Range [Max]	Attenuation Value	Package / Case	Package / Case	Power (Watts)
Hirose Electric USA, Inc. H2.4-R-SR2(11)	Surface Mount	1 Connector 2 Screws 2 Spring Washers	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	50 GHz	Flange	50 Ohms	Beryllium Copper	Compression	Mounting Hardware	Gold	Silver	OS-50	2.4 mm	APC-2.4	Screw	105 ░C	-55 °C	500
Hirose Electric USA, Inc. H2.4-R-SR2-1(12)	Surface Mount	1 Connector 2 Screws 2 Spring Washers	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	50 GHz	Flange	50 Ohms	Beryllium Copper	Compression	Mounting Hardware	Gold	Silver	OS-50	2.4 mm	APC-2.4	Screw	105 ░C	-55 °C	500
Hirose Electric USA, Inc. H2.4-R-SR2-1(11)	Surface Mount	1 Connector 2 Screws 2 Spring Washers	1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	50 GHz	Flange	50 Ohms	Beryllium Copper	Compression	Mounting Hardware	Gold	Silver	OS-50	2.4 mm	APC-2.4	Screw	105 ░C	-55 °C	500
Hirose Electric USA, Inc. H2.4-LR-SR2(11)	Board Edge End Launch	1 Connector 2 Screws 2 Spring Washers	1	Brass	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	50 GHz		50 Ohms	Beryllium Copper	Compression	Mounting Hardware	Gold	Silver	OS-50	2.4 mm	APC-2.4	Screw	105 ░C	-55 °C	500	Nickel
Hirose Electric USA, Inc. H2.4-R-SR2-SA(15)	Surface Mount		1	Brass	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	50 GHz	Flange	50 Ohms	Beryllium Copper	Compression	Mounting Hardware	Gold	Silver	OS-50	2.4 mm	APC-2.4	Screw	125 °C	-55 °C	500	Nickel
Hirose Electric USA, Inc. H2.4-AT(10)-PJ									50 Ohms														0 Hz	50 GHz	10 dB	In-Line Module	2.4 mm	1 W
Hirose Electric USA, Inc. H2.4-R-SR2-1(21)	Surface Mount		1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	50 GHz	Flange	50 Ohms	Beryllium Copper	Compression	Mounting Hardware	Gold	Silver	OS-50	2.4 mm	APC-2.4	Screw	105 ░C	-55 °C	500
Hirose Electric USA, Inc. H2.4-AT(8)-PJ									50 Ohms														0 Hz	50 GHz	8 dB	In-Line Module	2.4 mm	1 W
Hirose Electric USA, Inc. H2.4-R-SR2	Surface Mount		1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	50 GHz	Flange	50 Ohms	Beryllium Copper	Compression		Gold	Silver	OS-50	2.4 mm	APC-2.4	Screw	105 ░C	-55 °C	500
Hirose Electric USA, Inc. H2.4-R-SR2-1(22)	Surface Mount		1	Stainless Steel	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	50 GHz	Flange	50 Ohms	Beryllium Copper	Compression	Mounting Hardware	Gold	Silver	OS-50	2.4 mm	APC-2.4	Screw	105 ░C	-55 °C	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 55.47
		10	$ 42.98
		25	$ 39.02
		50	$ 36.35
		100	$ 33.93
		250	$ 31.08

Description

General part information

H2.4 Series

2.4mm (APC-2.4, OS-50) Connector Receptacle, Female Socket 50 Ohms Surface Mount Compression
