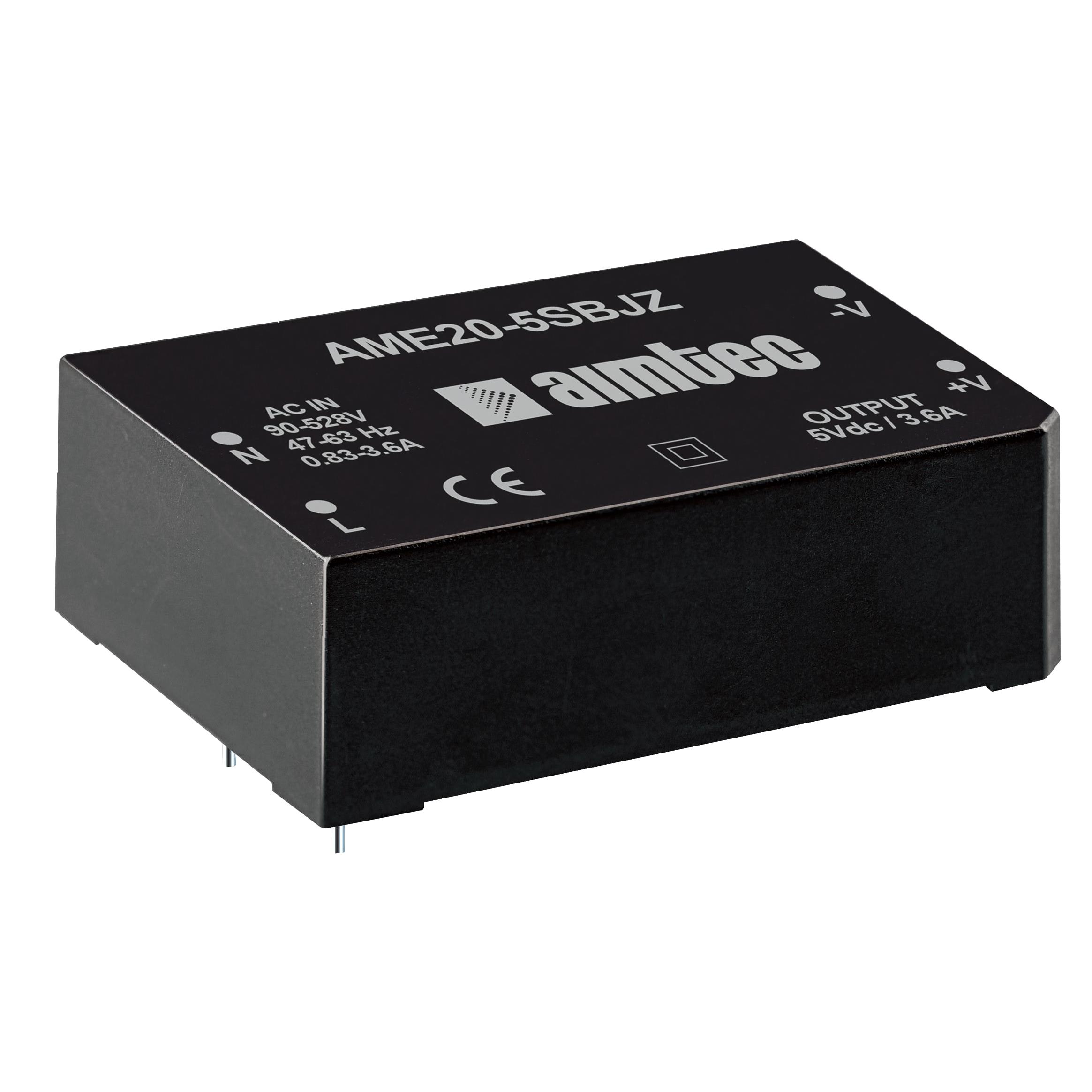

AME20-9SBJZ

Obsolete

aimtec

AC/DC POWER SUPPLY SINGLE-OUT 9V 2.23A 20W 4-PIN BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AME20-9SBJZ

Obsolete

aimtec

AC/DC POWER SUPPLY SINGLE-OUT 9V 2.23A 20W 4-PIN BOX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AME20-9SBJZ

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	2.23 A
Efficiency	79 %
Line Regulation	Ý0.5%
Load Regulation	Ý1%
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	5-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	70 mm
Size / Dimension [x]	2.76 in
Size / Dimension [y]	48 mm
Size / Dimension [y]	1.89 in
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Type	Enclosed
Voltage - Input [Max]	745 VDC, 528 VAC
Voltage - Input [Min]	90 VAC, 100 V
Voltage - Output 1	9 V
Weight	160 g
Weight	0.353 lb

AME20 Series

Part	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Approval Agency	Voltage - Output 1	Weight	Weight	Number of Outputs	Package / Case	Package / Case	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Load Regulation	Mounting Type	Power (Watts)	Line Regulation	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Line Regulation	Load Regulation	Features	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
aimtec AME20-12SBJZ	ITE (Commercial)	90 VAC 100 V	528 VAC 745 VDC	1.66 A	CE	12 V	160 g	0.353 lb	1	4 Lead	5-DIP Module	Enclosed	30 mm	1.18 in	48 mm	1.89 in	70 mm	2.76 in	1 %	Through Hole	20 W	0.5 %
aimtec AME20-24SBJZ	ITE (Commercial)	90 VAC 100 V	528 VAC 745 VDC	833 mA	CE	24 V	160 g	0.353 lb	1	4 Lead	5-DIP Module	Enclosed	30 mm	1.18 in	48 mm	1.89 in	70 mm	2.76 in	1 %	Through Hole	20 W	0.5 %	83 %
aimtec AME20-9SBJZ	ITE (Commercial)	90 VAC 100 V	528 VAC 745 VDC	2.23 A	CE	9 V	160 g	0.353 lb	1	4 Lead	5-DIP Module	Enclosed	30 mm	1.18 in	48 mm	1.89 in	70 mm	2.76 in		Through Hole	20 W		79 %	70 °C	-40 °C	Ý0.5%	Ý1%
aimtec AME20-515TCJZ	ITE (Commercial)	85 VAC 120 VDC	264 VAC 370 VDC		CE cURus	5 V	120 g	0.265 lb	3		9-DIP Module 8 Leads	Enclosed	23.5 mm	0.93 in	48 mm	1.89 in	70 mm	2.76 in	1 %	Through Hole	19 W	0.5 %	76 %					Universal Input	300 mA	300 mA	2 A
aimtec AME20-524DCJZ	ITE (Commercial)	85 VAC 120 VDC	264 VAC 370 VDC		CE cURus	5 V	120 g	0.265 lb	2		9-DIP Module 7 Leads	Enclosed	23.5 mm	0.93 in	48 mm	1.89 in	70 mm	2.76 in	1 %	Through Hole	20 W	0.5 %	77 %					Universal Input			2.5 A 300 mA
aimtec AME20-15SVZ	ITE (Commercial)	85 VAC 100 V	264 VAC 370 VDC	1.3 A		15 V	95 g	0.209 lb	1		5 Leads 8-DIP Module	Enclosed	22.5 mm	0.89 in	45 mm	1.77 "	62 mm	2.44 in	1 %	Through Hole	20 W	0.5 %		85 °C	-40 °C			Universal Input
aimtec AME20-15SCJZ	ITE (Commercial)	85 VAC 100 V	264 VAC 370 VDC	1.3 A	CE cURus	15 V	120 g	0.265 lb	1		9-DIP Module 6 Leads	Enclosed	23.5 mm	0.93 in	48 mm	1.89 in	70 mm	2.76 in	1 %	Through Hole	20 W	0.5 %	83 %					Universal Input
aimtec AME20-512DCJZ	ITE (Commercial)	85 VAC 120 VDC	264 VAC 370 VDC		CE cURus	5 V	120 g	0.265 lb	2		9-DIP Module 7 Leads	Enclosed	23.5 mm	0.93 in	48 mm	1.89 in	70 mm	2.76 in	1 %	Through Hole	20 W	0.5 %	75 %					Universal Input			2.5 A 600 mA
aimtec AME20-3.3SBJZ	ITE (Commercial)	90 VAC 100 V	528 VAC 745 VDC	3.6 A	CE	3.3 V	160 g	0.353 lb	1	4 Lead	5-DIP Module	Enclosed	30 mm	1.18 in	48 mm	1.89 in	70 mm	2.76 in	1 %	Through Hole	12 W	0.5 %	74 %
aimtec AME20-9SVZ	ITE (Commercial)	85 VAC 100 V	264 VAC 370 VDC	2.1 A		9 V	95 g	0.209 lb	1		5 Leads 8-DIP Module	Enclosed	22.5 mm	0.89 in	45 mm	1.77 "	62 mm	2.44 in	1 %	Through Hole	19 W	0.5 %	79 %	85 °C	-40 °C			Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.88

Description

General part information

AME20 Series

Enclosed AC DC Converters 1 Output 9V 2.23A 90 ~ 528 VAC, 100 ~ 745 VDC Input
