Q23568

Unknown

Bourns Inc.

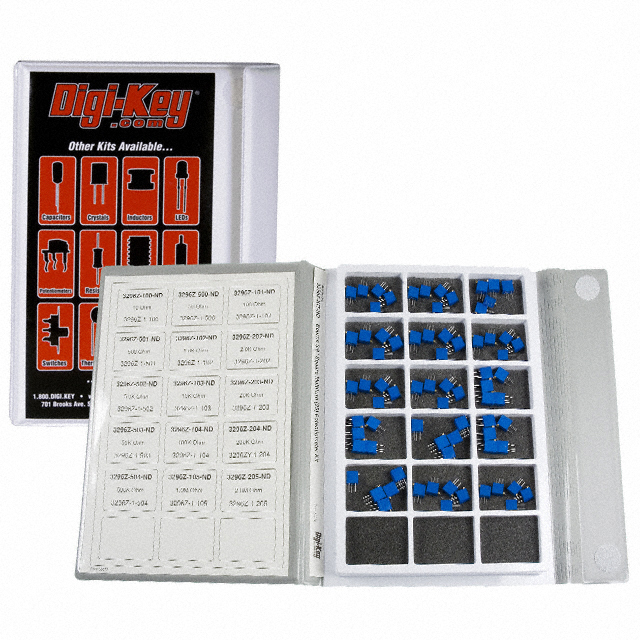

KIT POT TRIMMER 10-2M OHM 75PCS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q23568

Unknown

Bourns Inc.

KIT POT TRIMMER 10-2M OHM 75PCS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q23568

Kit Type	Trimmer
Number of Turns	25
Power (Watts)	0.5 W
Quantity	75 Pieces
Resistance (Ohms) [Max]	2M
Resistance (Ohms) [Min]	10 Ohms
Resistive Material	Cermet
Termination Style	PC Pins
Tolerance	10 %

- Series

Part	Quantity	Resistive Material	Number of Turns	Power (Watts)	Kit Type	Tolerance	Resistance (Ohms) [Min]	Resistance (Ohms) [Max]	Termination Style	Material - Core	Inductance Frequency - Test	Frequency - Self Resonant	Type	Mounting Type	Q @ Freq	Inductance	Shielding	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Package / Case	Resistance (Ohms) [Max]	Size / Dimension [z]	Size / Dimension [z]
Bourns Inc. Q23662	70 Pieces	Cermet	1	0.5 W	Trimmer	10 %	50 Ohms	1M	PC Pins
Bourns Inc. 4632						5 %				Iron	790 kHz	12 MHz	Drum Core Wirewound	Through Hole	107 790 kHz	100 µH	Unshielded	0.29 in	22.22 mm	0.875 in	7.37 mm	105 ░C	-55 °C	400 mA	3 Ohm	Axial
Bourns Inc. 4612						10 %				Phenolic	2.52 MHz	61 MHz	Wirewound	Through Hole	2.52 MHz 36	10 µH	Unshielded	0.27 in	22.22 mm	0.875 in	6.86 mm	125 °C	-55 °C	0.5 A	1.5 Ohm	Axial
Bourns Inc. Q23672	70 Pieces	Cermet	4	0.5 W	Trimmer	10 %	50 Ohms	1M	PC Pins
Bourns Inc. Q23568	75 Pieces	Cermet	25	0.5 W	Trimmer	10 %	10 Ohms	2M	PC Pins
Bourns Inc. 4642						5 %				Phenolic	790 kHz	11 MHz	Wirewound	Through Hole		100 µH	Unshielded	0.41 in	22.22 mm	0.875 in	10.41 mm	125 °C	-55 °C	160 mA	5.4 Ohm	Axial
Bourns Inc. Q23580	75 Pieces	Cermet	1	0.5 W	Trimmer	10 %	50 Ohms	2M	PC Pins
Bourns Inc. Q23586	90 Pieces	Cermet	12	250 mW	Trimmer	10 %	10 Ohms		PC Pins																		1 MΩ
Bourns Inc. Q23713	45 Pieces	Wirewound	1	1 W	Trimmer	5 %	50 Ohms	20k	PC Pins
Bourns Inc. 4652						5 %				Phenolic	252 kHz	3.7 MHz	Wirewound	Through Hole	59 252 kHz	1 mH	Unshielded	0.56 "			14.22 mm	125 °C	-55 °C	160 mA	19 Ohm	Axial		22.22 mm	0.875 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

Trimmer Potentiometer Kit 10 ~ 2M Ohm ±10% 1/2W Cermet 75 Pieces (15 Values - 5 Each)
