ASP-184329-01 - ASP-184329-01

ASP-184329-01

Active
Samtec Inc.

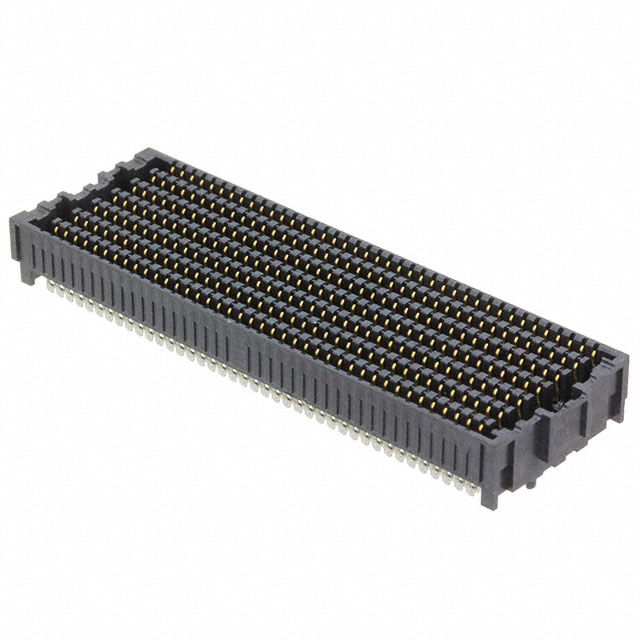

MEZZANINE CONNECTOR, ARRAY, FEMALE, 1.27 MM, 14 ROWS, 560 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSEAF-10-05.0-L-05-1-A-K-TR Datasheet 02Conn Array Rcpt 160POS SMD Gold / Fill Rows 3, 4, 7, 8 Only, Not Available As Standard.+2
ASP-184329-01 - ASP-184329-01

ASP-184329-01

Active
Samtec Inc.

MEZZANINE CONNECTOR, ARRAY, FEMALE, 1.27 MM, 14 ROWS, 560 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

DocumentsSEAF-10-05.0-L-05-1-A-K-TR Datasheet 02Conn Array Rcpt 160POS SMD Gold / Fill Rows 3, 4, 7, 8 Only, Not Available As Standard.+2

Technical Specifications

Parameters and characteristics for this part

SpecificationASP-184329-01
Connector TypeHigh Density Array, Female
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesBoard Guide
Height Above Board0.258 "
Height Above Board6.55 mm
Mated Stacking Heights19.5 mm, 9.5 mm, 8.5 mm, 15.5 mm, 17.5 mm, 10 mm, 13 mm, 13.5 mm
Mounting TypeSurface Mount
Number of Rows14
Pitch [x]0.05 in
Pitch [x]1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 43.89
10$ 41.70
25$ 39.06
50$ 33.35
Tape & Reel (TR) 150$ 29.38
300$ 26.81
NewarkEach 1$ 40.38
5$ 37.71
10$ 35.38
25$ 33.32
50$ 31.49

Description

General part information

184329-01 Series

Position Connector High Density Array, Female Surface Mount Gold
