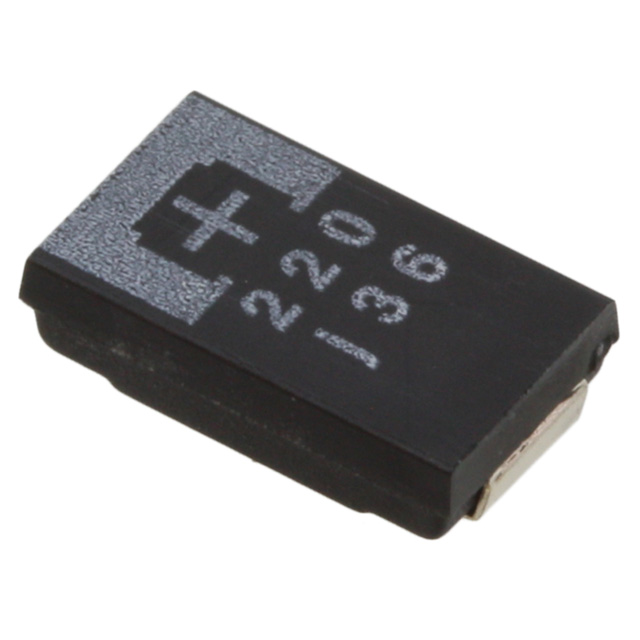

10TPE220MIL

Active

Panasonic Industrial Automation Sales

TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 10V, 20% +TOL, 20% -TOL, 220UF, SURFACE MOUNT, 2917, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 10V, 20% +TOL, 20% -TOL, 220UF, SURFACE MOUNT, 2917, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	10TPE220MIL

Capacitance	220 µF
ESR (Equivalent Series Resistance)	18 mOhm
Features	General Purpose
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	D3L
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

Part	Lifetime @ Temp.	Tolerance	Manufacturer Size Code	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Mounting Type	Type	ESR (Equivalent Series Resistance)	Voltage - Rated	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [x]
Panasonic Industrial Automation Sales 10TPE68M	2000 Hrs	20 %	D2E	105 ░C	-55 °C	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "	68 µF	2 mm	0.079 in	General Purpose	Surface Mount	Molded	25 mOhm	10 V
Panasonic Industrial Automation Sales 10TPE220MIL	2000 Hrs	20 %	D3L	105 ░C	-55 °C	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "	220 µF			General Purpose	Surface Mount	Molded	18 mOhm	10 V	3 mm	0.118 in
Panasonic Industrial Automation Sales 10TPE47MAZB	1000 Hrs	20 %	B2	105 ░C	-55 °C	3528 Metric		2.8 mm		3.5 mm		47 µF	2 mm	0.079 in	General Purpose	Surface Mount	Molded	35 mOhm	10 V			1411	0.11 in	0.138 "
Panasonic Industrial Automation Sales 10TPE150MPL	2000 Hrs	20 %	D3L	105 ░C	-55 °C	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "	150 µF				Surface Mount	Molded	25 mOhm	10 V	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF Molded Tantalum Polymer Capacitor 10 V 2917 (7343 Metric) 18mOhm @ 100kHz
