RM15WTP-CP(9)

Obsolete

Hirose Electric USA, Inc.

CONN CABLE CLAMP INT SZ15 M16

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN CABLE CLAMP INT SZ15 M16

Technical Specifications

Parameters and characteristics for this part

Specification	RM15WTP-CP(9)

Cable Exit	180 °
Cable Opening [custom]	0.413 in
Cable Opening [custom]	10.5 mm
Color	Silver
Diameter - Outside [diameter]	19 mm
Diameter - Outside [diameter]	0.748 in
Features	Washer, Gasket
For Use With/Related Products	RM-W Series Plug
Includes	2 pc Clamp, 1 Gasket, 1 Washer
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Zinc Alloy, Brass
Plating	Nickel
Shell Size - Insert	15
Thread Size	0.75
Thread Size	M16
Type	Cable Clamp, Internal

Part	Material	Shell Size - Insert	Thread Size	Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Includes	Features	Color	Type	Plating	Cable Opening [custom]	Cable Opening [custom]	Ingress Protection	Cable Exit	For Use With/Related Products	Number of Positions	Mounting Type	Connector Type	Orientation
Hirose Electric USA, Inc. RM15WTP-CP(9)	Brass Zinc Alloy	15	0.75	M16	19 mm	0.748 in	1 Gasket 1 Washer 2 pc Clamp	Gasket Washer	Silver	Cable Clamp Internal	Nickel	0.413 in	10.5 mm	IP67 - Dust Tight Waterproof	180 °	RM-W Series Plug
Hirose Electric USA, Inc. RM15WTP-10P
Hirose Electric USA, Inc. RM15WTP-12S		15															12	Free Hanging (In-Line)	Female Sockets Plug	Keyed
Hirose Electric USA, Inc. RM15WTP-CP(8)(71)	Brass Zinc Alloy	15	0.75	M16	19 mm	0.748 in	1 Gasket 1 Washer 2 pc Clamp	Gasket Washer	Silver	Cable Clamp Internal	Nickel	0.413 in	10.5 mm	IP67 - Dust Tight Waterproof	180 °	RM-W Series Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

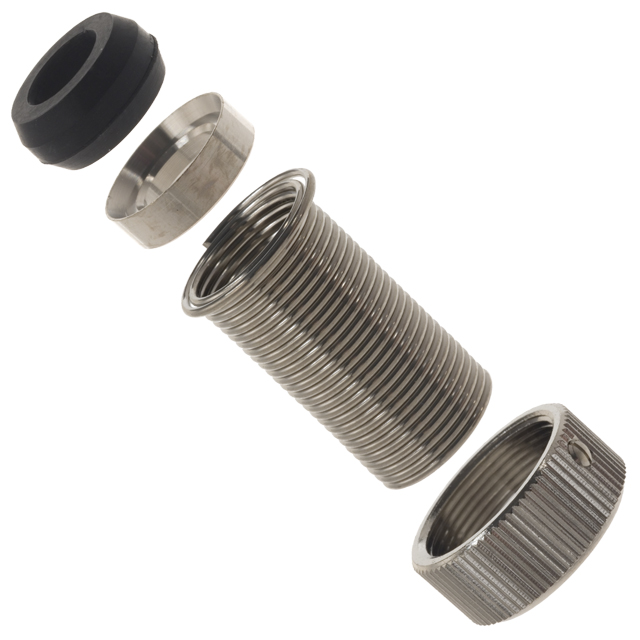

Silver Connector Cable Clamp, Internal M16x0.75 15

Technical documentation and resources
