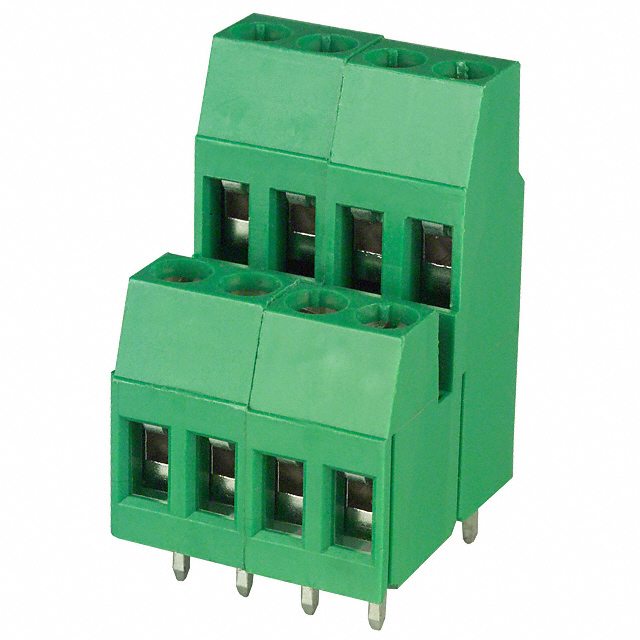

ED790/4

Active

On Shore Technology Inc.

TERM BLK 4POS SIDE ENTRY 5MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 4POS SIDE ENTRY 5MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ED790/4

Clamp Material - Plating	Copper
Color	Green
Contact Material - Plating [custom]	Brass
Current	20 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	4
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Contact Material - Plating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Clamp Material - Plating	Pitch [x]	Pitch [x]	Current	Color	Screw Thread	Number of Levels	Mating Orientation	Wire Termination	Positions Per Level	Voltage	Housing Material	Torque - Screw	Torque - Screw
On Shore Technology Inc. ED790/4	Brass	-30 ░C	105 ░C	30 AWG	12 AWG	Through Hole	Copper	5 mm	0.197 in	20 A	Green	M3	2	Horizontal with Board	Screw - Rising Cage Clamp	4	300 V	Polyamide (PA) Nylon	4.4 Lb-In	0.5 Nm
On Shore Technology Inc. ED790/10	Brass	-30 ░C	105 ░C	30 AWG	12 AWG	Through Hole	Copper	5 mm	0.197 in	20 A	Green	M3	2	Horizontal with Board	Screw - Rising Cage Clamp	10	300 V	Polyamide (PA) Nylon	4.4 Lb-In	0.5 Nm
On Shore Technology Inc. ED790/7	Brass	-30 ░C	105 ░C	30 AWG	12 AWG	Through Hole	Copper	5 mm	0.197 in	20 A	Green	M3	2	Horizontal with Board	Screw - Rising Cage Clamp	7	300 V	Polyamide (PA) Nylon	4.4 Lb-In	0.5 Nm
On Shore Technology Inc. ED790/8	Brass	-30 ░C	105 ░C	30 AWG	12 AWG	Through Hole	Copper	5 mm	0.197 in	20 A	Green	M3	2	Horizontal with Board	Screw - Rising Cage Clamp	8	300 V	Polyamide (PA) Nylon	4.4 Lb-In	0.5 Nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
