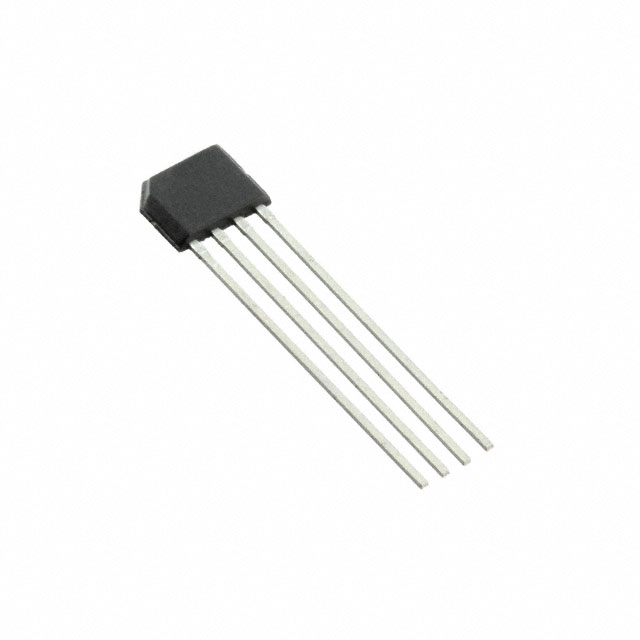

MLX90295EVC-FAA-300-SP

Melexis Technologies NV

IC HALL SENSOR PREC PROG 4SIP

Search across all available documentation for this part.

Melexis Technologies NV

IC HALL SENSOR PREC PROG 4SIP

Technical Specifications

Parameters and characteristics for this part

Specification	MLX90295EVC-FAA-300-SP

Axis	Single
Current - Output (Max) [Max]	40 mA
Current - Supply (Max) [Max]	9 mA
Features	Temperature Compensated, Programmable
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Analog Voltage
Sensing Range [Max]	62 mT
Sensing Range [Min]	6 mT
Technology	Hall Effect
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Range [Min]	Sensing Range [Max]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Output Type	Features	Technology	Axis	Mounting Type	Package / Case	Supplier Device Package
Melexis Technologies NV MLX90295EVC-FAA-300-SP	4.5 V	5.5 V	6 mT	62 mT	40 mA	85 °C	-40 °C	9 mA	Analog Voltage	Programmable Temperature Compensated	Hall Effect	Single
Melexis Technologies NV MLX90295EVC-FAA-000-BU	4.5 V	5.5 V	333 mT	800 mT	40 mA	85 °C	-40 °C	9 mA	Analog Voltage	Programmable Temperature Compensated	Hall Effect	Single	Through Hole	4-SSIP Module	4-SIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 3.43

General part information

Hall Effect Sensor Single Axis
