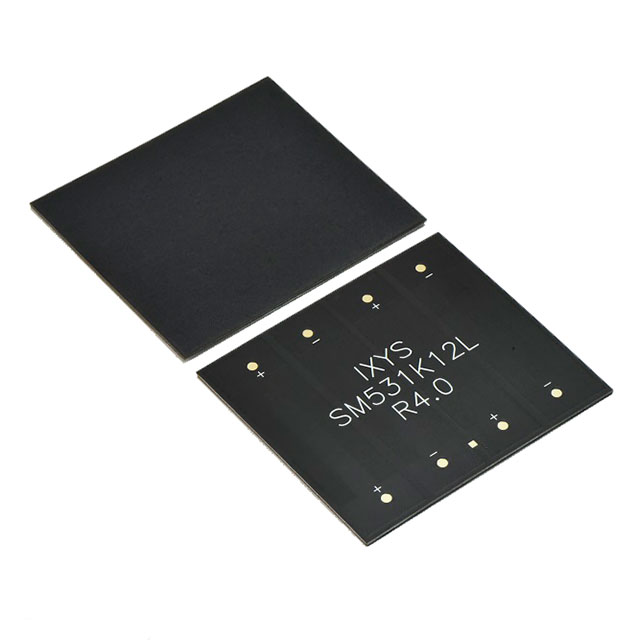

SM531K12L
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 1.37W 8.29V
Deep-Dive with AI
Search across all available documentation for this part.
SM531K12L
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 1.37W 8.29V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM531K12L |
|---|---|
| Current - Short Circuit (Isc) | 218 mA |
| Current @ Pmpp | 205 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 1.37 W |
| Size / Dimension [x] | 90 mm |
| Size / Dimension [x] | 3.543 " |
| Size / Dimension [y] | 79 mm |
| Size / Dimension [y] | 3.11 " |
| Size / Dimension [z] | 0.079 " |
| Size / Dimension [z] | 2 mm |
| Type | Monocrystalline |
| Voltage - Open Circuit | 8.29 V |
| Voltage @ Pmpp | 6.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.71 | |
| 60 | $ 21.64 | |||
| 120 | $ 20.74 | |||
Description
General part information
SM531 Series
Monocrystalline Solar Cell 1.37 W 8.29 V
Documents
Technical documentation and resources
No documents available
