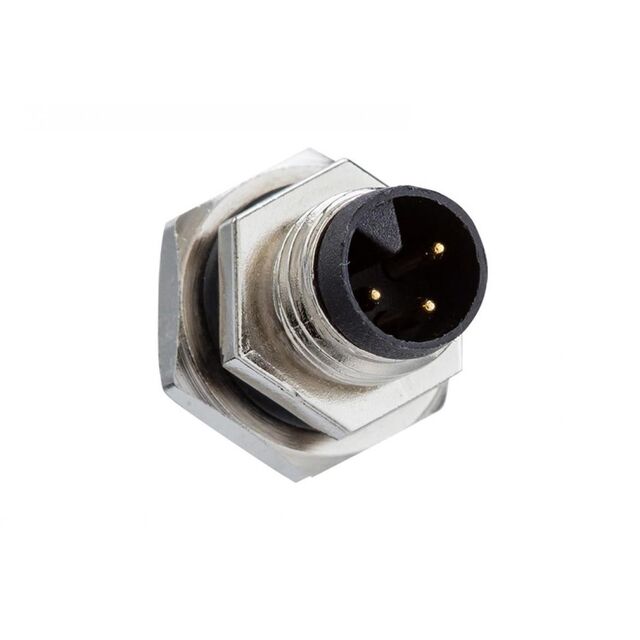

8A-06PMMS-SH7001

Active

Amphenol LTW

M8 CONN WITH KEY

Search across all available documentation for this part.

Active

Amphenol LTW

M8 CONN WITH KEY

Technical Specifications

Parameters and characteristics for this part

Specification	8A-06PMMS-SH7001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-6
Shielding	Shielded
Voltage Rating	30 VDC

Part	Contact Material	Primary Material	Voltage Rating	Ingress Protection	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Finish	Shell Material	Orientation	Material Flammability Rating	Mounting Feature	Connector Type	Shell Size - Insert	Number of Positions	Current Rating (Amps)	Insert Material	Shielding
Amphenol LTW 8A-06PMMS-SH7001	Copper Alloy	Metal	30 VDC	IP67 - Dust Tight Waterproof	Gold	-40 °C	105 ░C	Silver	Nickel	Zinc Alloy	Keyed	UL94 V-0	Bulkhead - Rear Side Nut	Male Pins Receptacle	M8-6	6	1.5 A	Polyamide (PA) Nylon Glass Filled	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
