SC28L194A1A,529

Obsolete

Freescale Semiconductor - NXP

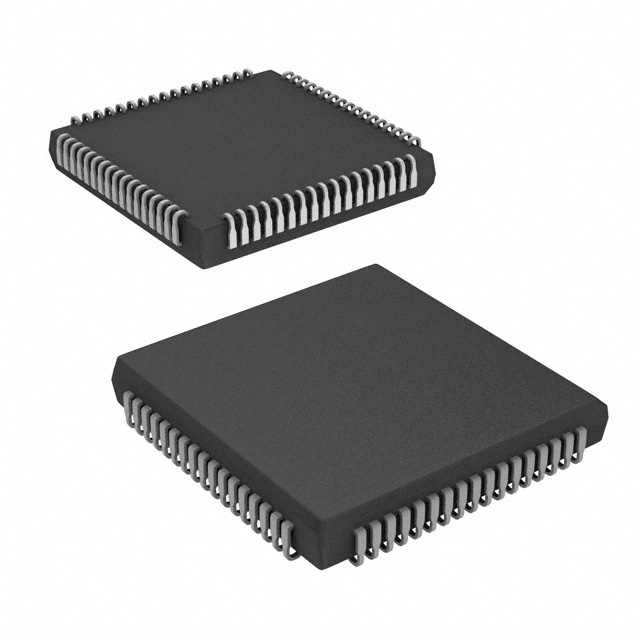

IC UART QUAD 68PLCC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC28L194A1A,529

Obsolete

Freescale Semiconductor - NXP

IC UART QUAD 68PLCC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC28L194A1A,529

Features	Timer/Counter, Internal Oscillator
FIFO's	16 Byte
Mounting Type	Surface Mount
Number of Channels	QUART
Number of Channels [custom]	4
Package / Case	68-LCC (J-Lead)
Supplier Device Package	68-PLCC (24.18x24.18)
Voltage - Supply	5 V, 3.3 V
With Auto Flow Control	True
With False Start Bit Detection	True
With Modem Control	True

SC28 Series

Part	FIFO's	Mounting Type	Supplier Device Package	Number of Channels	Data Rate (Max)	Package / Case	Features	Voltage - Supply	Number of Channels	Number of Channels [custom]	Protocol	Package / Case	Package / Case [custom]	Number of Channels [custom]	Number of Channels [custom]	Package / Case	Package / Case
Freescale Semiconductor - NXP SC28L92A1A,529	16 Byte	Surface Mount	44-PLCC (16.59x16.59)	2	1 Mbps	44-LCC (J-Lead)	Configurable GPIO Internal Oscillator Timer/Counter	3.3 V 5 V
Freescale Semiconductor - NXP SC28L92A1BS,551	16 Byte	Surface Mount	48-HVQFN (6x6)	2	1 Mbps	48-VFQFN Exposed Pad	Configurable GPIO Internal Oscillator Timer/Counter	3.3 V 5 V
Freescale Semiconductor - NXP SC28L194A1A,529	16 Byte	Surface Mount	68-PLCC (24.18x24.18)			68-LCC (J-Lead)	Internal Oscillator Timer/Counter	3.3 V 5 V	QUART	4
Freescale Semiconductor - NXP SC28L198A1A,529	16 Byte	Surface Mount	84-PLCC (29.26x29.26)	8		84-LCC (J-Lead)	Internal Oscillator Timer/Counter	3.3 V 5 V
Freescale Semiconductor - NXP SC28L201A1DGG,118	256 Byte	Surface Mount	48-TSSOP		3.125 Mbps	48-TFSOP	Configurable GPIO Internal Oscillator Timer/Counter	3.3 V 5 V			RS485	0.24 in	6.1 mm	UART	1
Freescale Semiconductor - NXP SC28L198A1BE,551	16 Byte	Surface Mount	100-LQFP (14x14)	8		100-LQFP	Internal Oscillator Timer/Counter	3.3 V 5 V
Freescale Semiconductor - NXP SC28L198A1A,512	16 Byte	Surface Mount	84-PLCC (29.26x29.26)	8		84-LCC (J-Lead)	Internal Oscillator Timer/Counter	3.3 V 5 V
Freescale Semiconductor - NXP SC28L202A1DGG/G:11	256 Byte	Surface Mount	56-TSSOP		3.125 Mbps	56-TFSOP	Configurable GPIO Internal Oscillator Timer/Counter	3.3 V 5 V			RS485			UART	1	6.1 mm	0.24 in
Freescale Semiconductor - NXP SC28L92A1BS,557	16 Byte	Surface Mount	48-HVQFN (6x6)	2	1 Mbps	48-VFQFN Exposed Pad	Configurable GPIO Internal Oscillator Timer/Counter	3.3 V 5 V
Freescale Semiconductor - NXP SC28L92A1BS,528	16 Byte	Surface Mount	48-HVQFN (6x6)	2	1 Mbps	48-VFQFN Exposed Pad	Configurable GPIO Internal Oscillator Timer/Counter	3.3 V 5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SC28 Series

UART IC 4, QUART Channel 16 Byte 68-PLCC (24.18x24.18)
