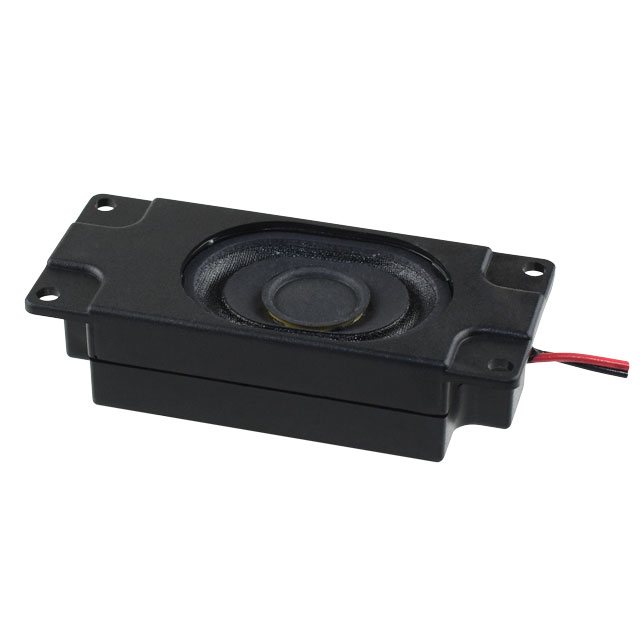

CES-703116-28PM

Active

CUI Devices

SPEAKER 8OHM 2W TOP PORT 102DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 2W TOP PORT 102DB

Technical Specifications

Parameters and characteristics for this part

Specification	CES-703116-28PM

Distortion Rating	10 %
Efficiency - dBA	102 dBA
Efficiency - Testing	2W/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	710 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	710 Hz
Height - Seated (Max) [Max] [z]	16.5 mm
Height - Seated (Max) [Max] [z]	16.51 mm
Impedance	8 Ohms
Material - Cone	Paper/Cloth
Material - Magnet	Nd-Fe-B
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Power - Max [Max]	3 W
Power - Rated	2 W
Shape	Rectangular
Size / Dimension [x]	2.756 in
Size / Dimension [x]	70 mm
Size / Dimension [y]	1.22 "
Size / Dimension [y]	31 mm
Technology	Magnetic
Termination	Wire Leads
Type	Enclosure Included, General Purpose

Part	Power - Rated	Port Location	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Material - Cone	Material - Magnet	Efficiency - Type	Type	Technology	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency - Testing	Efficiency - dBA	Shape	Frequency Range [Max]	Frequency Range [Min]	Frequency - Self Resonant	Distortion Rating	Termination	Power - Max [Max]
CUI Devices CES-703116-28PM	2 W	Top	8 Ohms	-20 C	60 °C	Paper/Cloth	Nd-Fe-B	Sound Pressure Level (SPL)	Enclosure Included General Purpose	Magnetic	16.5 mm	16.51 mm	1.22 "	2.756 in	31 mm	70 mm	2W/100mm	102 dBA	Rectangular	20 kHz	710 Hz	710 Hz	10 %	Wire Leads	3 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms General Purpose, Enclosure Included Speaker 2 W 710 Hz ~ 20 kHz Top Rectangular
