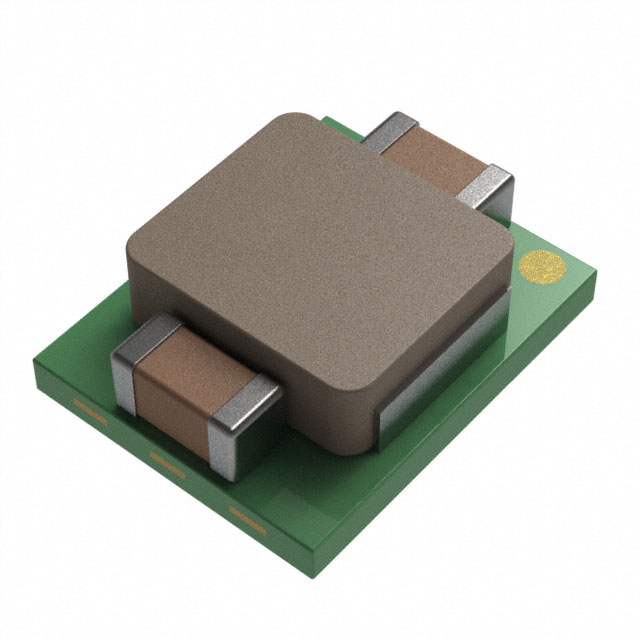

MUN3CAD01-SC
ActiveDelta Electronics/Cyntec
DC DC CONVERTER 0.8-4V
Deep-Dive with AI
Search across all available documentation for this part.
MUN3CAD01-SC
ActiveDelta Electronics/Cyntec
DC DC CONVERTER 0.8-4V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MUN3CAD01-SC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 93 % |
| Features | UVLO, Remote On/Off, SCP, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-TDFN Module |
| Size / Dimension [x] | 2.9 mm |
| Size / Dimension [x] | 0.11 in |
| Size / Dimension [y] | 0.09 " |
| Size / Dimension [y] | 2.3 mm |
| Size / Dimension [z] | 0.04 in |
| Size / Dimension [z] | 1 mm |
| Supplier Device Package | 6-DFN (2.9x2.3) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output 1 [Max] | 4 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.71 | |
| 5 | $ 3.66 | |||
| 10 | $ 3.61 | |||
| 25 | $ 3.50 | |||
| 50 | $ 3.39 | |||
| 100 | $ 3.29 | |||
| 250 | $ 3.18 | |||
| 500 | $ 2.97 | |||
| Digi-Reel® | 1 | $ 3.71 | ||
| 5 | $ 3.66 | |||
| 10 | $ 3.61 | |||
| 25 | $ 3.50 | |||
| 50 | $ 3.39 | |||
| 100 | $ 3.29 | |||
| 250 | $ 3.18 | |||
| 500 | $ 2.97 | |||
| Tape & Reel (TR) | 2000 | $ 2.63 | ||
Description
General part information
MUN3CAD01 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 4V 1A 2.7V - 5.5V Input
