SIT9107AI-24HH25E300.00000X

SiTime

MEMS OSC XO 300.0000MHZ LVDS SMD

Search across all available documentation for this part.

SiTime

MEMS OSC XO 300.0000MHZ LVDS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Frequency Stability	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Frequency	Function	Base Resonator	Output	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
SiTime SIT9107AI-24HH25E250.00000X	76 mA	85 °C	-40 °C	2.5 V	15 ppm	0.039 "	1 mm	6-SMD No Lead Exposed Pad	250 MHz	Enable/Disable	MEMS	LVDS	Surface Mount	7 mm	5 mm	0.276 "	0.197 "	XO (Standard)
SiTime SIT9107AI-24HH25E300.00000X	76 mA	85 °C	-40 °C	2.5 V	15 ppm	0.039 "	1 mm	6-SMD No Lead Exposed Pad	300 MHz	Enable/Disable	MEMS	LVDS	Surface Mount	7 mm	5 mm	0.276 "	0.197 "	XO (Standard)
SiTime SIT9107AI-331H18E245.76000X	41 mA	85 °C	-40 °C	1.8 V	20 ppm			6-SMD No Lead	245.76 MHz	Enable/Disable	MEMS	CML	Surface Mount	5 mm	3.2 mm	0.197 in	0.126 "	XO (Standard)	0.8 mm	0.031 "
SiTime SIT9107AN-23FN25E400.00000X	76 mA	70 °C	0 °C	2.5 V	10 ppm			6-SMD No Lead	400 MHz	Enable/Disable	MEMS	LVDS	Surface Mount	5 mm	3.2 mm	0.197 in	0.126 "	XO (Standard)	0.8 mm	0.031 "
SiTime SIT9107AI-243N25E300.00000X	76 mA	85 °C	-40 °C	2.5 V	50 ppm	0.039 "	1 mm	6-SMD No Lead Exposed Pad	300 MHz	Enable/Disable	MEMS	LVDS	Surface Mount	7 mm	5 mm	0.276 "	0.197 "	XO (Standard)
SiTime SIT9107AI-283N33E300.0000X	79 mA	85 °C	-40 °C	3.3 V	50 ppm	0.039 "	1 mm	6-SMD No Lead	300 MHz	Enable/Disable	MEMS	LVDS	Surface Mount	7 mm	5 mm	0.276 "	0.197 "	XO (Standard)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 168.47

General part information

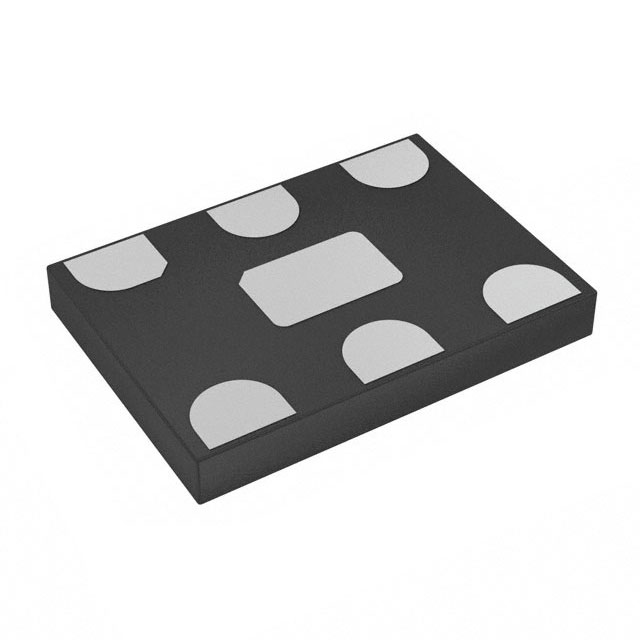

300 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead Exposed Pad

Technical documentation and resources
