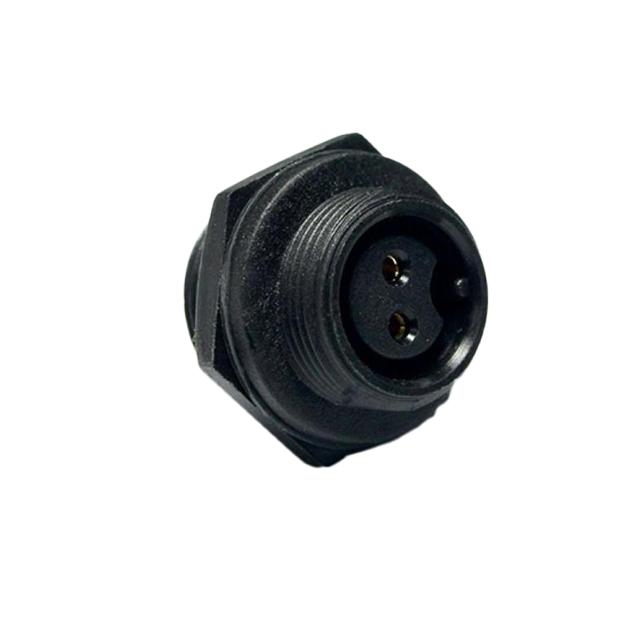

ABB-02RMFS-LC7001

Active

Amphenol LTW

STANDARD STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

STANDARD STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ABB-02RMFS-LC7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Finish	Nickel
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Current Rating (Amps)	Mounting Feature	Shielding	Contact Material	Material Flammability Rating	Primary Material	Connector Type	Contact Finish - Mating	Number of Positions	Voltage Rating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Orientation	Fastening Type	Shell Finish	Insert Material	Ingress Protection
Amphenol LTW ABB-02RMFS-LC7001	10 A	Bulkhead - Rear Side Nut	Unshielded	Copper Alloy	UL94 V-0	Plastic	Receptacle Female Sockets	Gold	2	300 VDC	Black	-40 °C	105 ░C	B	Keyed	Bayonet Lock	Nickel	Polyamide (PA) Nylon Glass Filled	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
