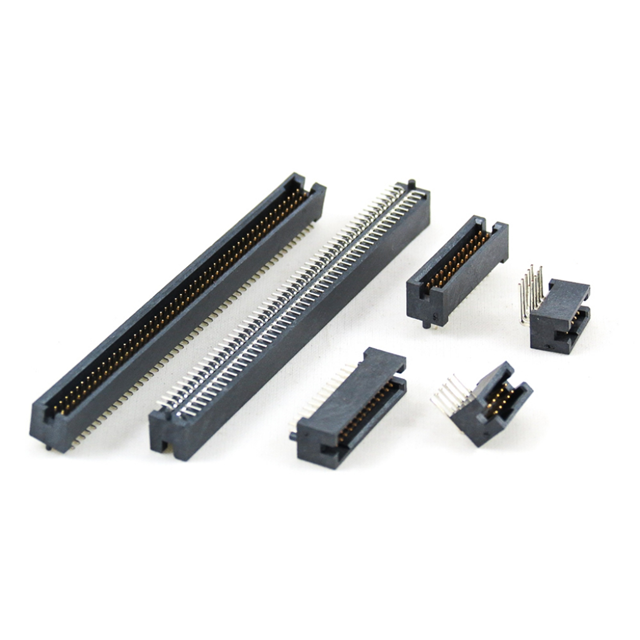

2216-10C00R2U
ActiveOupiin
BOX HEADER, 10 PIN, RIGHT ANGLE,
Deep-Dive with AI
Search across all available documentation for this part.
2216-10C00R2U
ActiveOupiin
BOX HEADER, 10 PIN, RIGHT ANGLE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2216-10C00R2U |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post | 1.91 mm |
| Contact Length - Post [x] | 0.075 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Height | 5.65 mm |
| Insulation Height | 0.222 " |
| Insulation Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.43 | |
| 500 | $ 1.19 | |||
| 1000 | $ 0.95 | |||
| 1500 | $ 0.81 | |||
| 2000 | $ 0.71 | |||
Description
General part information
2216 Series
Connector Header Through Hole, Right Angle 10 position 0.050" (1.27mm)
Documents
Technical documentation and resources
No documents available
