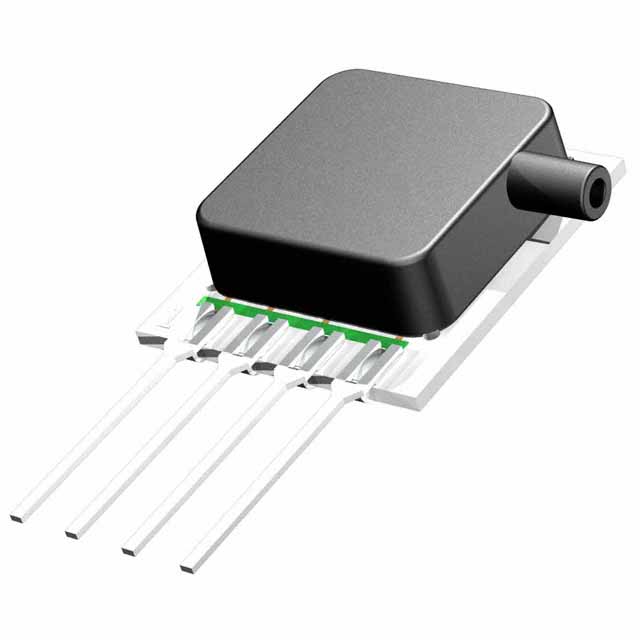

5 INCH-G-BASIC

Unknown

Amphenol All Sensors Corporation

SENSOR 0.18PSIG 0.08" .0225V

Search across all available documentation for this part.

Unknown

Amphenol All Sensors Corporation

SENSOR 0.18PSIG 0.08" .0225V

Technical Specifications

Parameters and characteristics for this part

Part	Accuracy	Port Style	Features	Output [Max]	Termination Style	Output Type	Voltage - Supply	Port Size	Port Size [x]	Port Size [x]	Package / Case	Pressure Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Operating Pressure	Operating Pressure	Mounting Type	Port Size	Port Size	Output
Amphenol All Sensors Corporation 10 INCH-G-BASIC	0.5 %	Barbless	Temperature Compensated	30 mV	PC Pin	Wheatstone Bridge	6 V	Dual Tube	2.14 mm	0.08 "	4-SIP Module	Vented Gauge	-25 °C	85 °C	Board Mount	0.36 PSI	2.49 kPa	Through Hole
Amphenol All Sensors Corporation 5 INCH-G-BASIC	0.5 %	Barbless	Temperature Compensated	22.5 mV	PC Pin	Wheatstone Bridge	6 V	Male Tube			4-SIP Module	Vented Gauge	-25 °C	85 °C	Board Mount	0.18 PSI	1.25 kPa	Through Hole	0.08 "	2.14 mm	4.5 V
Amphenol All Sensors Corporation 30 INCH-G-BASIC	0.5 %	Barbless	Temperature Compensated	30 mV	PC Pin	Wheatstone Bridge	6 V	Dual Tube	2.14 mm	0.08 "	4-SIP Module	Vented Gauge	-25 °C	85 °C	Board Mount	1.08 PSI	7.48 kPa	Through Hole
Amphenol All Sensors Corporation 20 INCH-G-BASIC	0.5 %	Barbless	Temperature Compensated	30 mV	PC Pin	Wheatstone Bridge	6 V	Male Tube			4-SIP Module	Vented Gauge	-25 °C	85 °C	Board Mount	0.72 PSI	4.98 kPa	Through Hole	0.08 "	2.14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 55.00

General part information

Pressure Sensor 0.18PSI (1.25kPa) Vented Gauge Male - 0.08" (2.14mm) Tube 0 mV ~ 22.5 mV (4.5V) 4-SIP Module
